Air Cleaner Outlet Duct Replacement

Air Cleaner Outlet Duct Replacement

Removal Procedure

Warning:
Refer to Safety Glasses Warning Safety Glasses Warning.


1. Ignition OFF.





2. Detach the positive crankcase ventilation (PCV) hose from the air cleaner outlet duct.

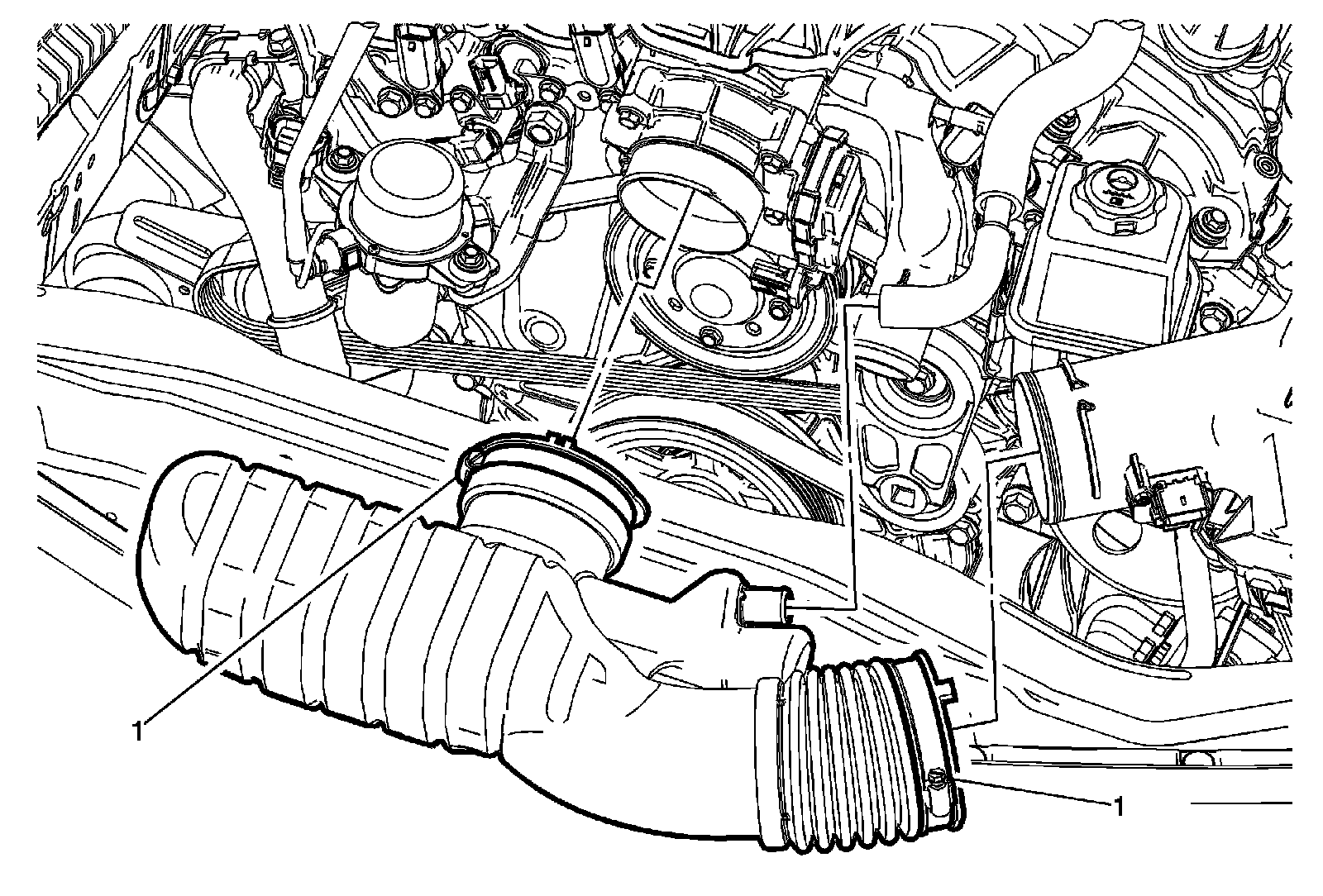

3. Remove the air cleaner outlet duct retaining clamps (1).

4. Remove the air cleaner outlet duct from the vehicle.

Installation Procedure





1. Install the air cleaner outlet duct to the vehicle.

Caution:
Refer to Fastener Caution Fastener Caution.

2. Position the air cleaner outlet duct clamps (1) and tighten to 2 Nm (18 lb in).

3. Install the positive crankcase ventilation (PCV) hose to the air cleaner outlet duct.
