Body Harness Routing- Luggage Compartment (Convertible)




Harness Routing Views

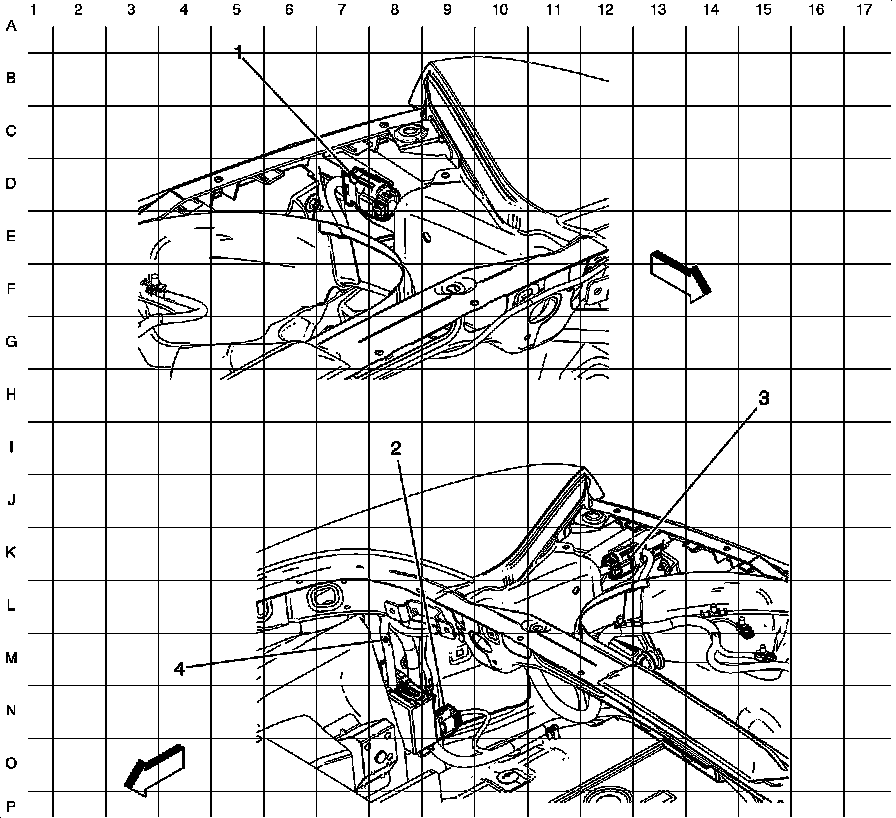

Body Harness Routing- Luggage Compartment (Convertible)





1 - X400

2 - X403

3 - X401

4 - J409
