Secondary Timing Chain Tensioner Shoe Replacement - Left Side

Secondary Timing Chain Tensioner Shoe Replacement - Left Side

Removal Procedure

1. Remove the engine front cover. Refer to Engine Front Cover Replacement Service and Repair.

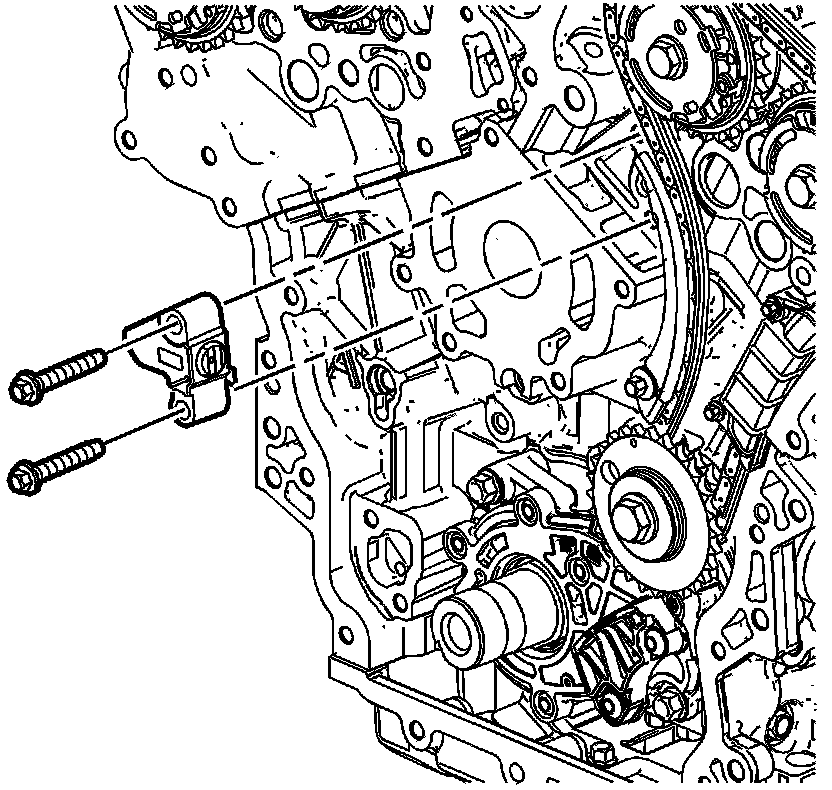

2. Remove the left bank secondary camshaft drive chain tensioner. Refer to Secondary Timing Chain Tensioner Removal - Left Side 22. Secondary Timing Chain Tensioner Removal - Left Side.

Installation Procedure





1. Install the left bank secondary camshaft drive chain tensioner. Refer to Secondary Timing Chain Tensioner Installation - Left Side 111. Secondary Timing Chain Tensioner Installation - Left Side.

2. Install the engine front cover. Refer to Engine Front Cover Replacement Service and Repair.
