J314

Harness Routing Views

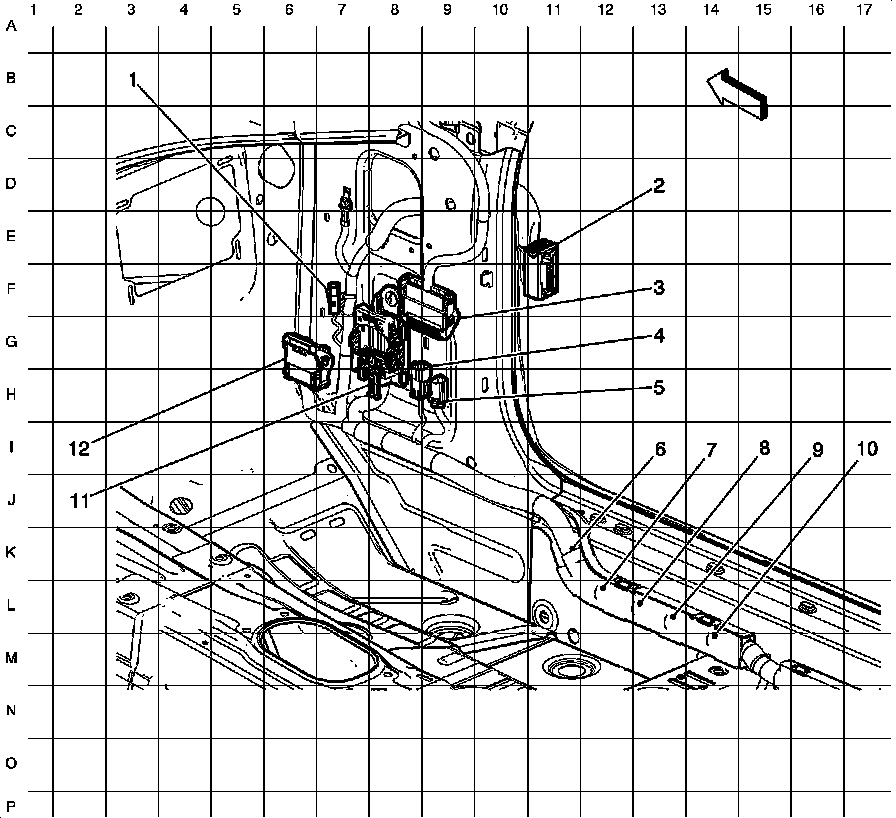

Body Harness Routing- Right Front of the Passenger Compartment





1 - X209

2 - X600

3 - X204

4 - X254

5 - X256

6 - J305

7 - J304

8 - J307

9 - J314

10 - J308

11 - X208

12 - X210
