Home >> Chevrolet >> 2012 >> Camaro V6-3.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> System Diagram

System Diagram




Starting and Charging Schematics

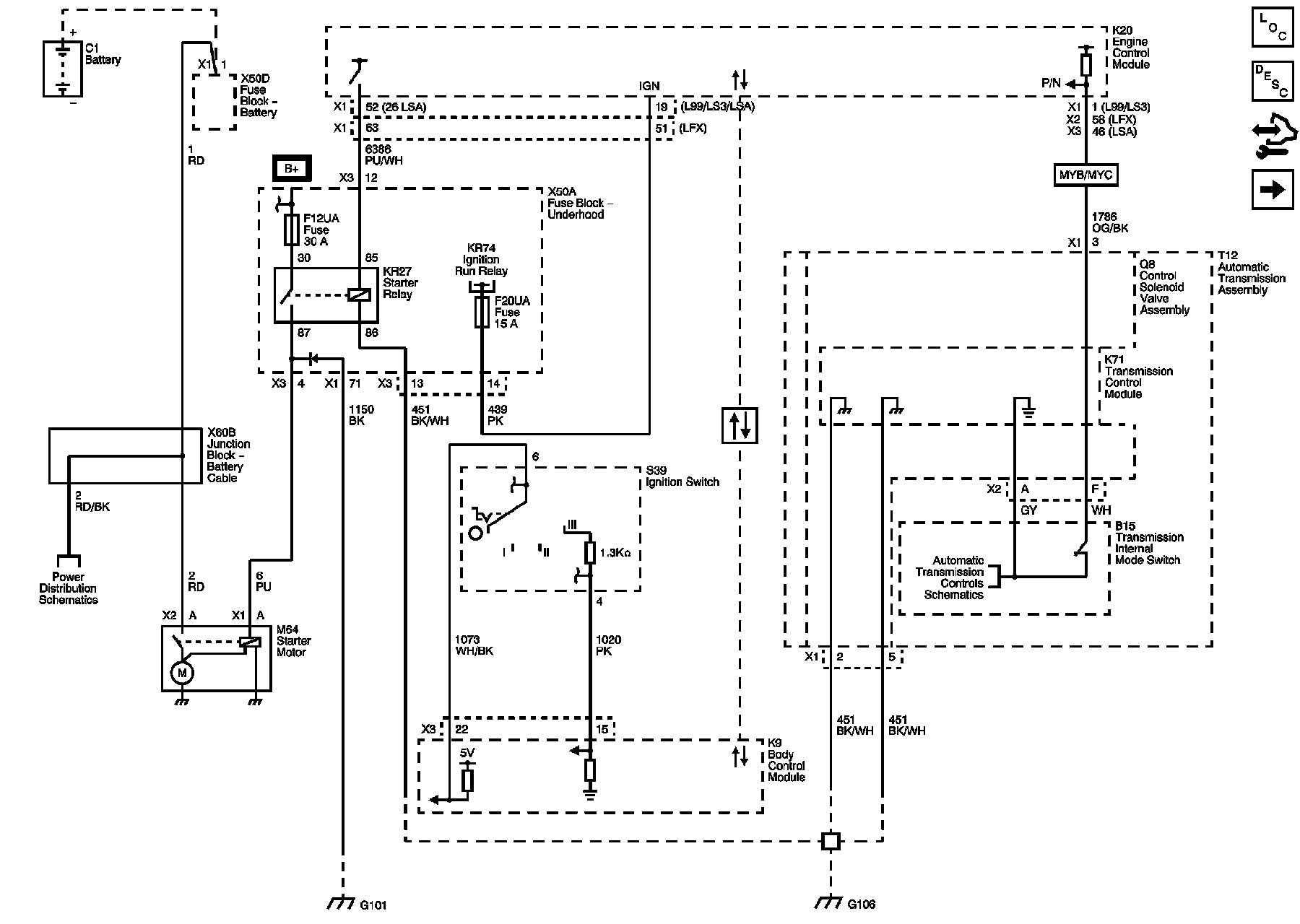

Starting





Master Electrical Component List
Starting System Description and Operation
Control Module References
Data Communication Schematics

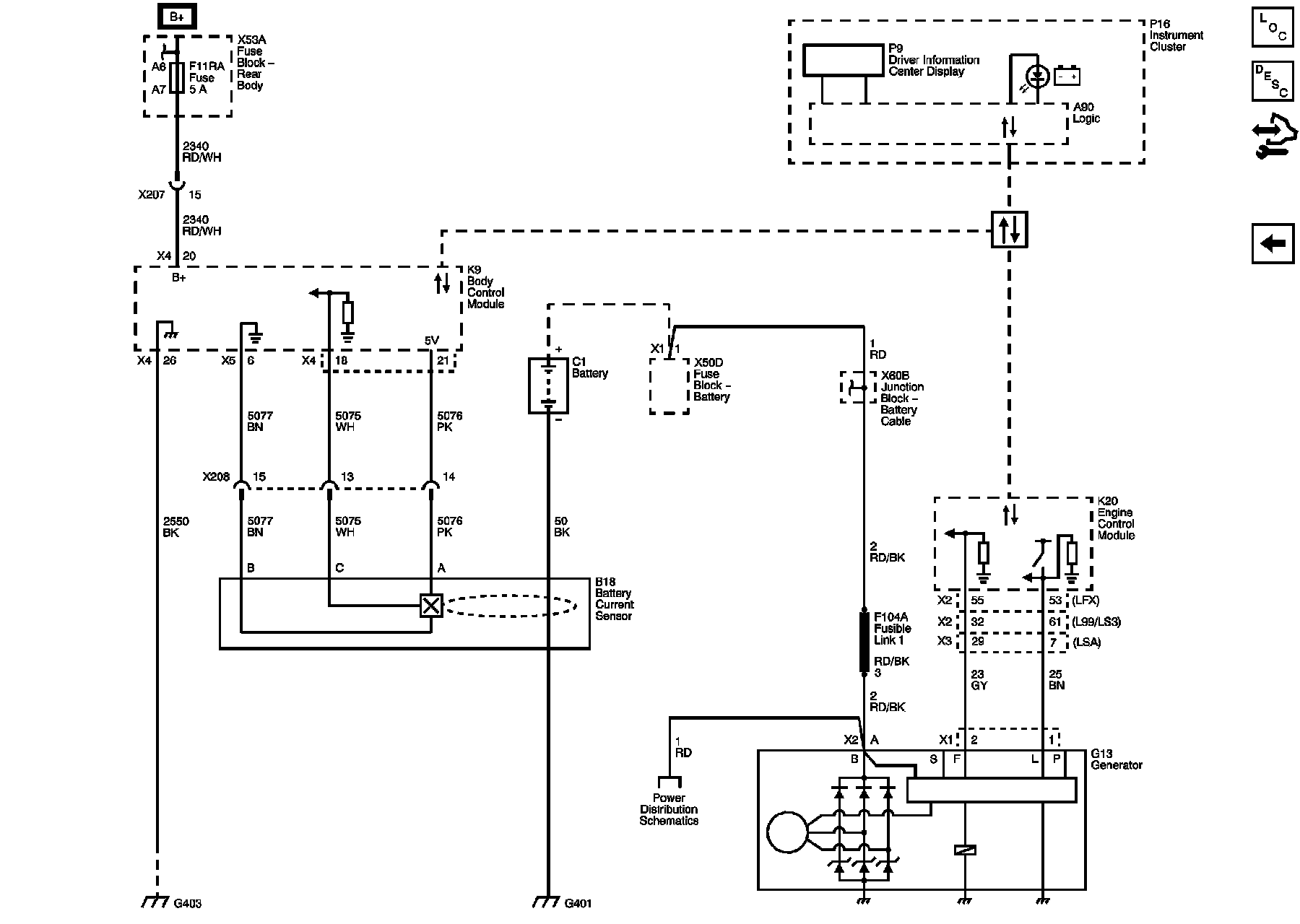

Charging





Master Electrical Component List
Charging System Description and Operation
Control Module References
Data Communication Schematics
