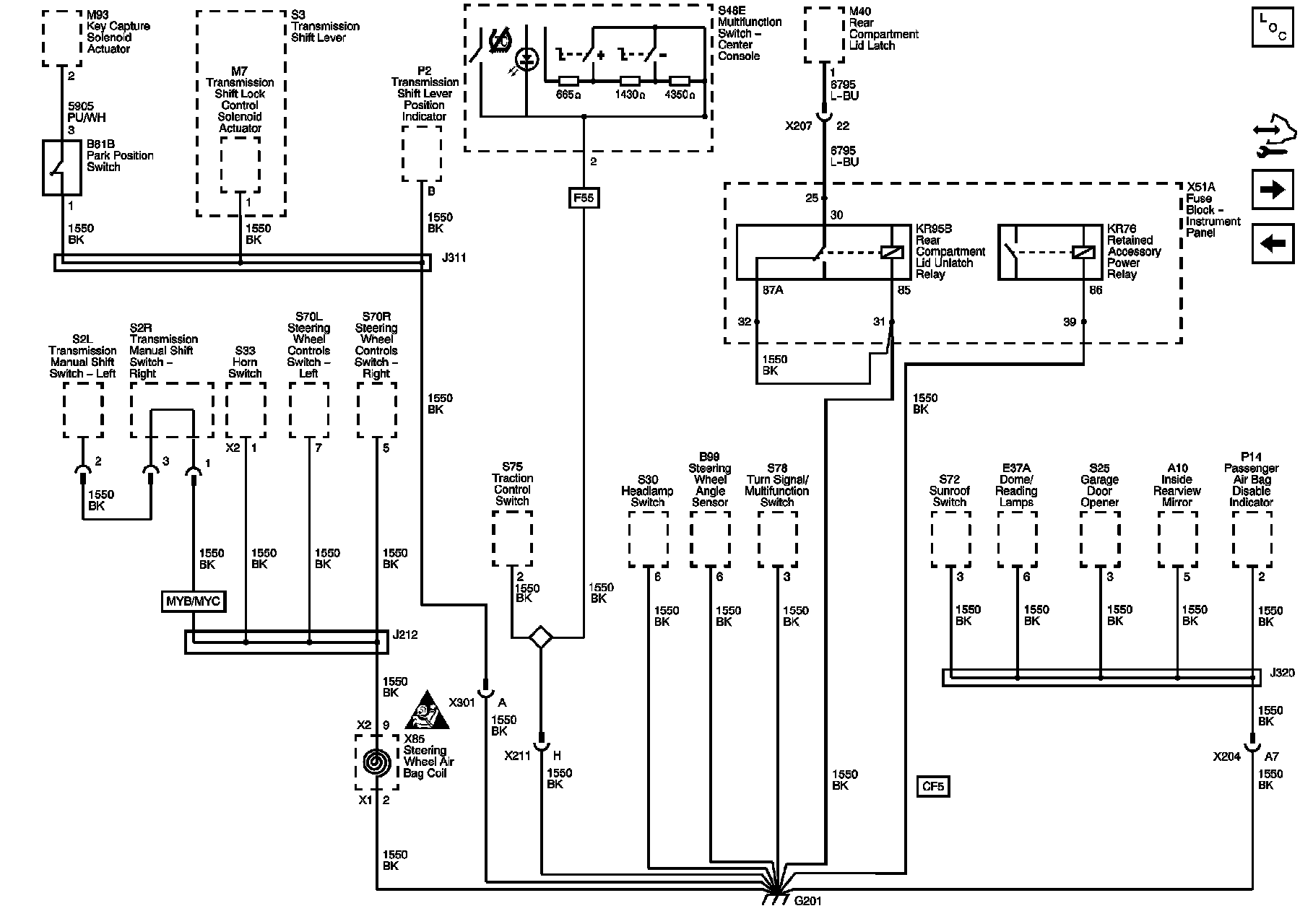

G201

Ground Distribution Schematics

G201

Master Electrical Component List
Control Module References
G202 and G203
Electrical Center Identification Views
Master Electrical Schematic Icons
