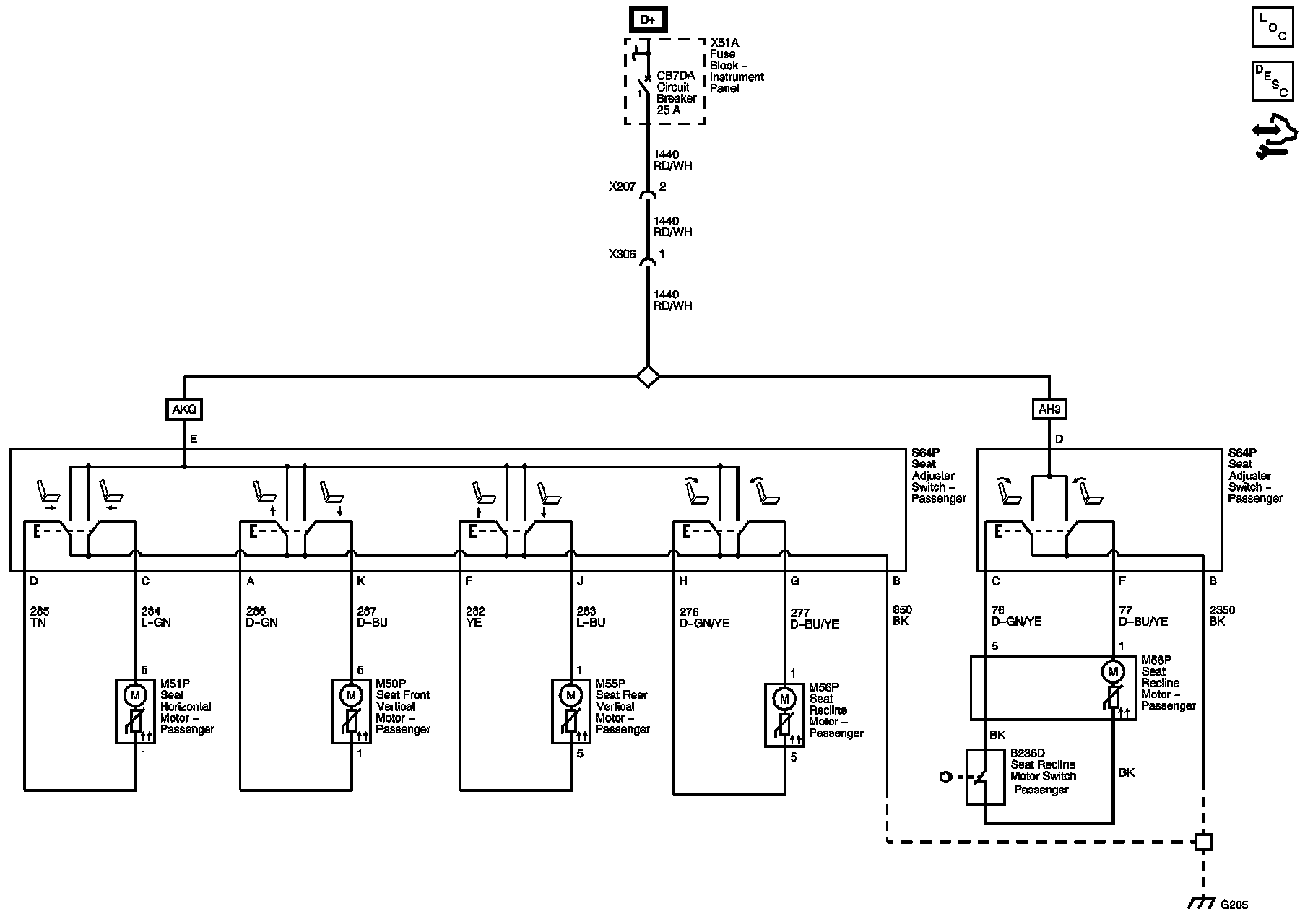

Passenger Seat Schematics




Passenger Seat Schematics

Passenger Seat Adjustments





Master Electrical Component List
Power Seats System Description and Operation
Control Module References
F6D, F15D, F16D, F25D, F27D, F29D, F30D Fuses and CB7D, CB26D Circuit Breakers
F6D, F15D, F16D, F25D, F27D, F29D, F30D Fuses and CB7D, CB26D Circuit Breakers
G205
