System Diagram




Automatic Transmission Controls Schematics

Power, Ground, Data Communication, and MIL

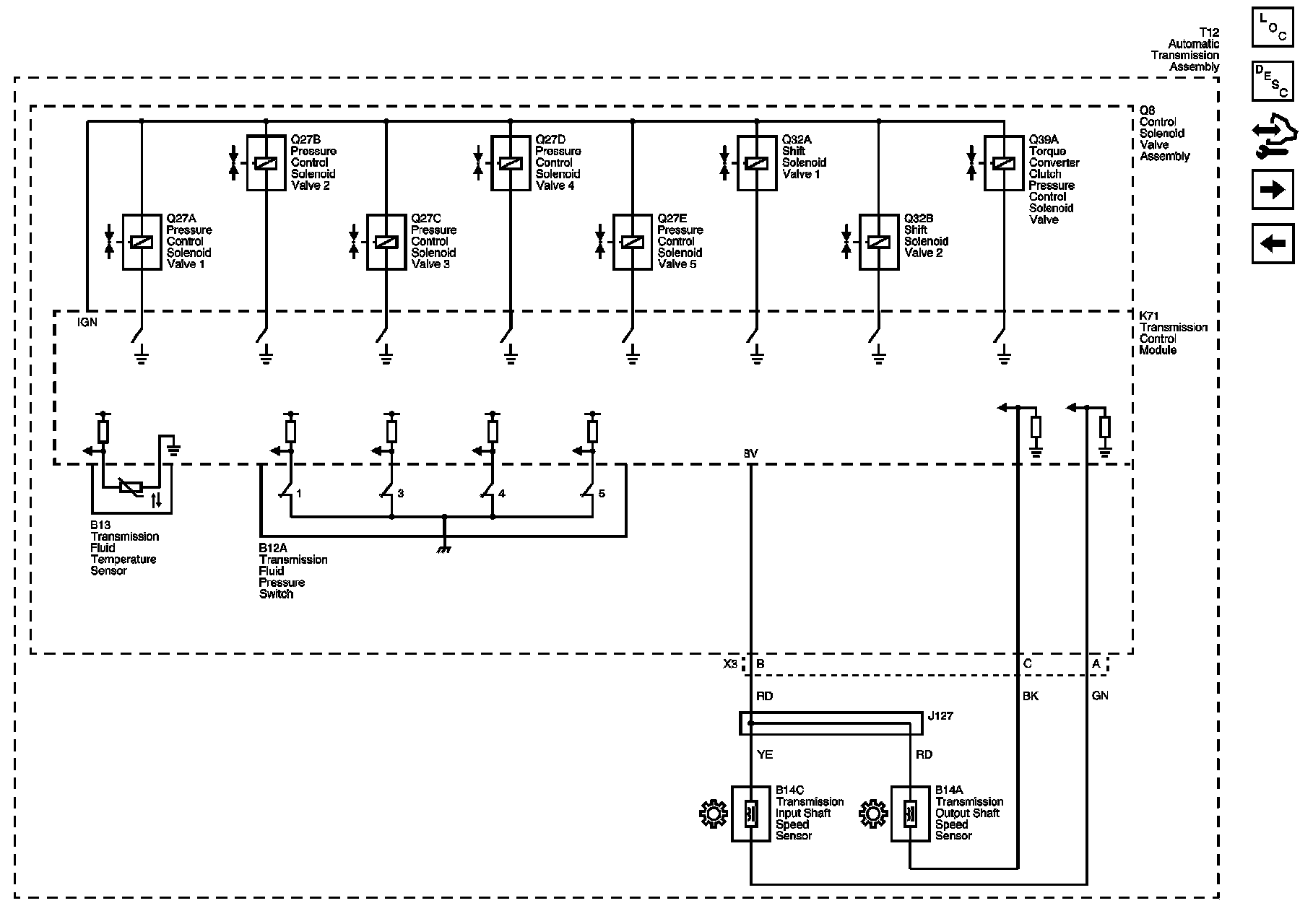

Speed and Temperature Sensors, Pressure and Shift Controls






Internal Mode and Tap Up/Tap Down Switches
