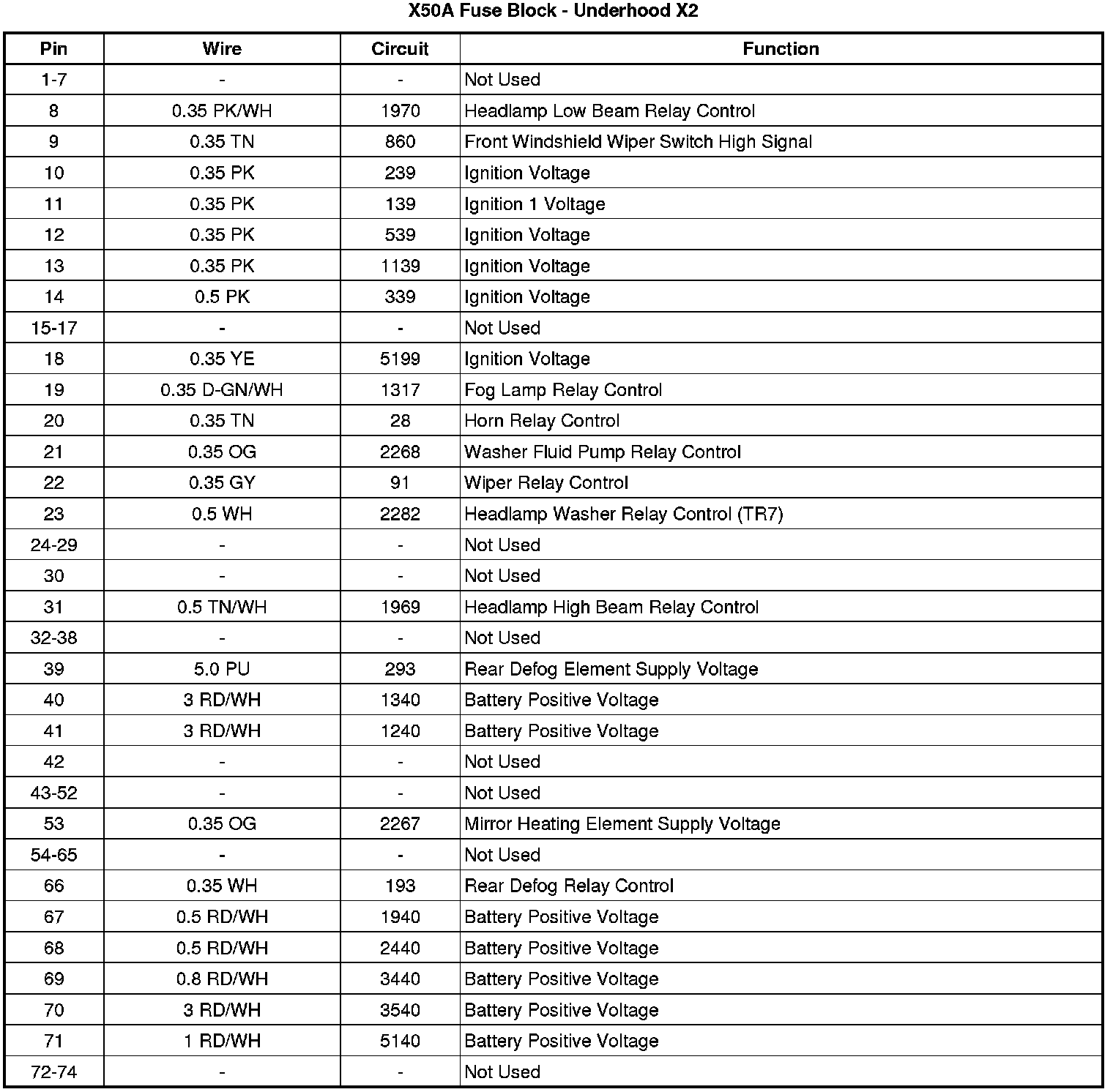

X50A Fuse Block - Underhood X2
X50A Fuse Block - Underhood X2
Electrical Center Identification Views
X50A
Fuse Block
- Underhood X2
