Passenger Seat Cushion

Passenger Compartment/Roof Component Views

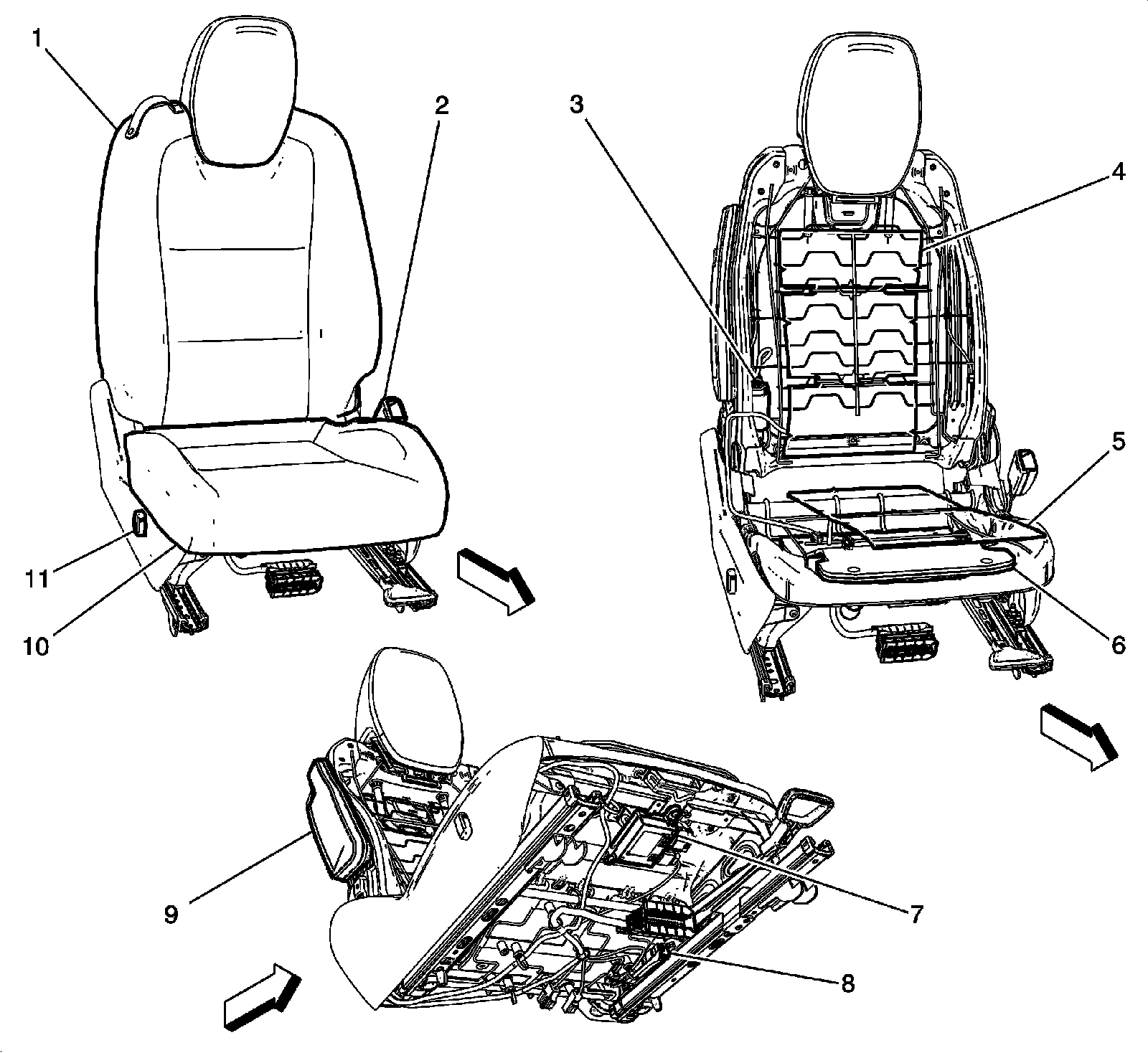

Front Passenger Seat Components





1 - Passenger Seat Back Cushion

2 - B88P Seat Belt Switch - Passenger

3 - M56P Seat Recline Motor - Passenger

4 - E14C Seat Heating Element - Passenger Back (KA1)

5 - E14D Seat Heating Element - Passenger Cushion (KA1)

6 - B60 Passenger Presence Sensor

7 - K85 Passenger Presence Detection Module

8 - B62P Seat Position Sensor - Passenger

9 - F106RF Seat Air Bag - Right Front

10 - Passenger Seat Cushion

11 - S64P Seat Adjuster Switch - Passenger
