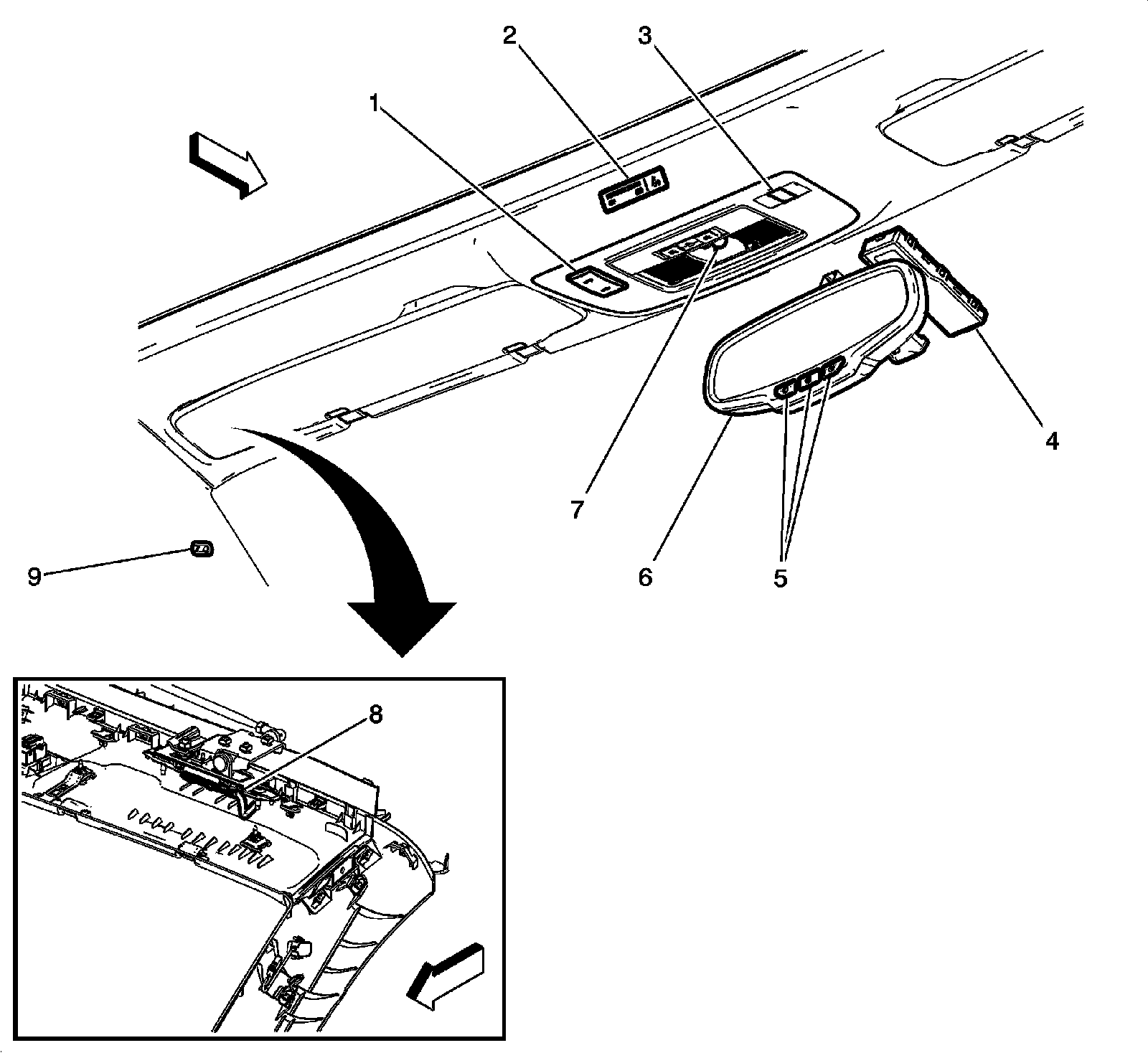

Front of Roof Components (Convertible)

Passenger Compartment/Roof Component Views

Front of Roof Components (Convertible)





1 - S22B Folding Top Control Switch

2 - P14 Passenger Air Bag Disable Indicator

3 - S25 Garage Door Opener (UG1)

4 - K77 Remote Control Door Lock Receiver (BTV)

5 - S51 Telematics Button Assembly (UE1)

6 - A10 Inside Rearview Mirror

7 - E37A Dome/Reading Lamps

8 - B140 Folding Top Header Latch Actuator Position Switch

9 - B24 Cellular Phone Microphone (UE1)
