Instrument Panel Outer Air Outlet Duct Replacement - Left Side

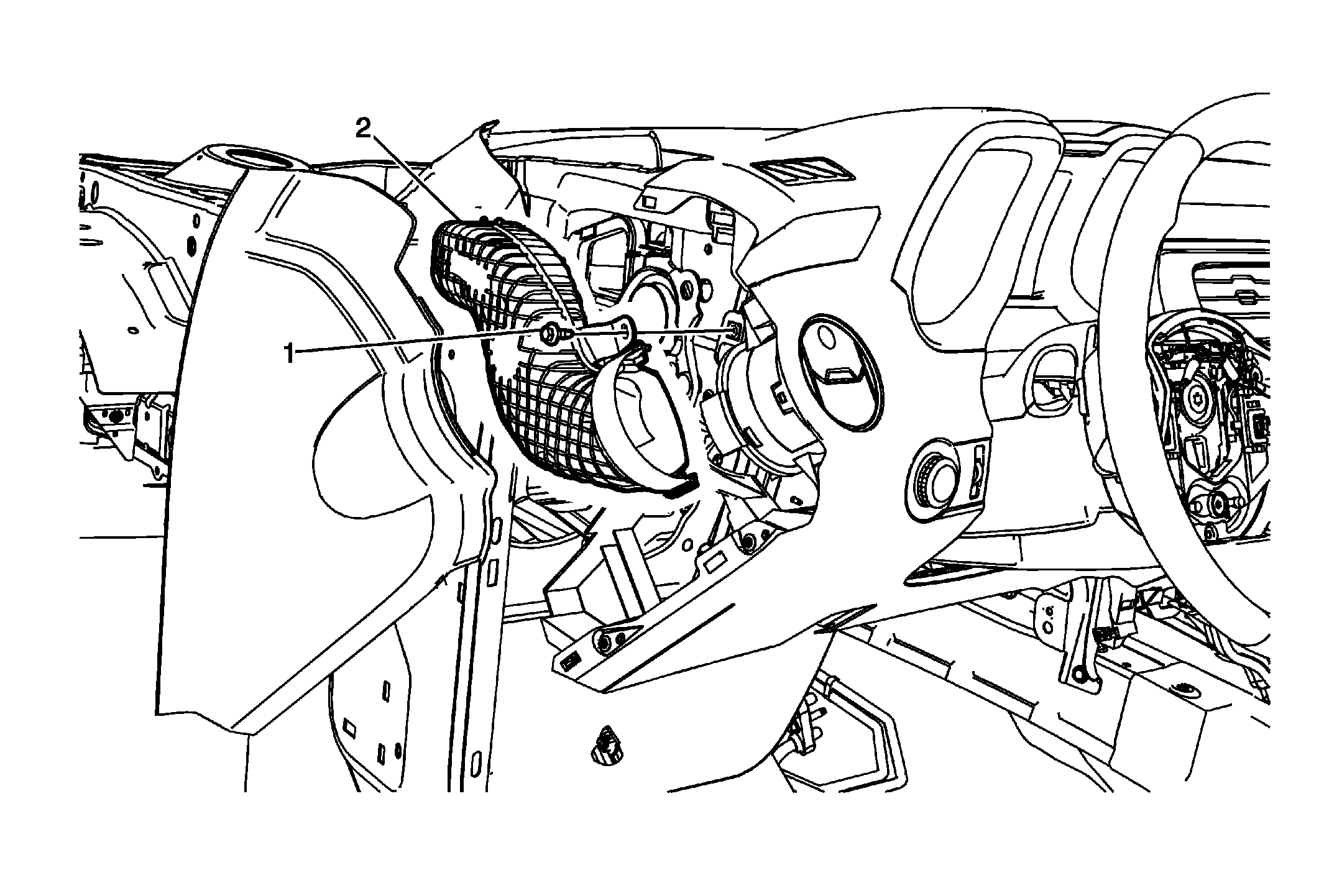

Fig 1: Instrument Panel Outer Air Outlet Duct And Screw - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel (I/P) outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement . Reposition any wiring or hoses to gain access to air duct.
1	Instrument Panel Outer Front Air Outlet Duct Screw (Qty: 1) CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
2	Instrument Panel Outer Front Air Outlet Duct

Callout

Component Name

Preliminary Procedures

Remove the instrument panel (I/P) outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement .
Reposition any wiring or hoses to gain access to air duct.

Instrument Panel Outer Front Air Outlet Duct Screw (Qty: 1)

CAUTION:

Tighten
1.5 N.m (13 lb in)

Instrument Panel Outer Front Air Outlet Duct
