Instrument Panel Center Air Outlet Grille Replacement

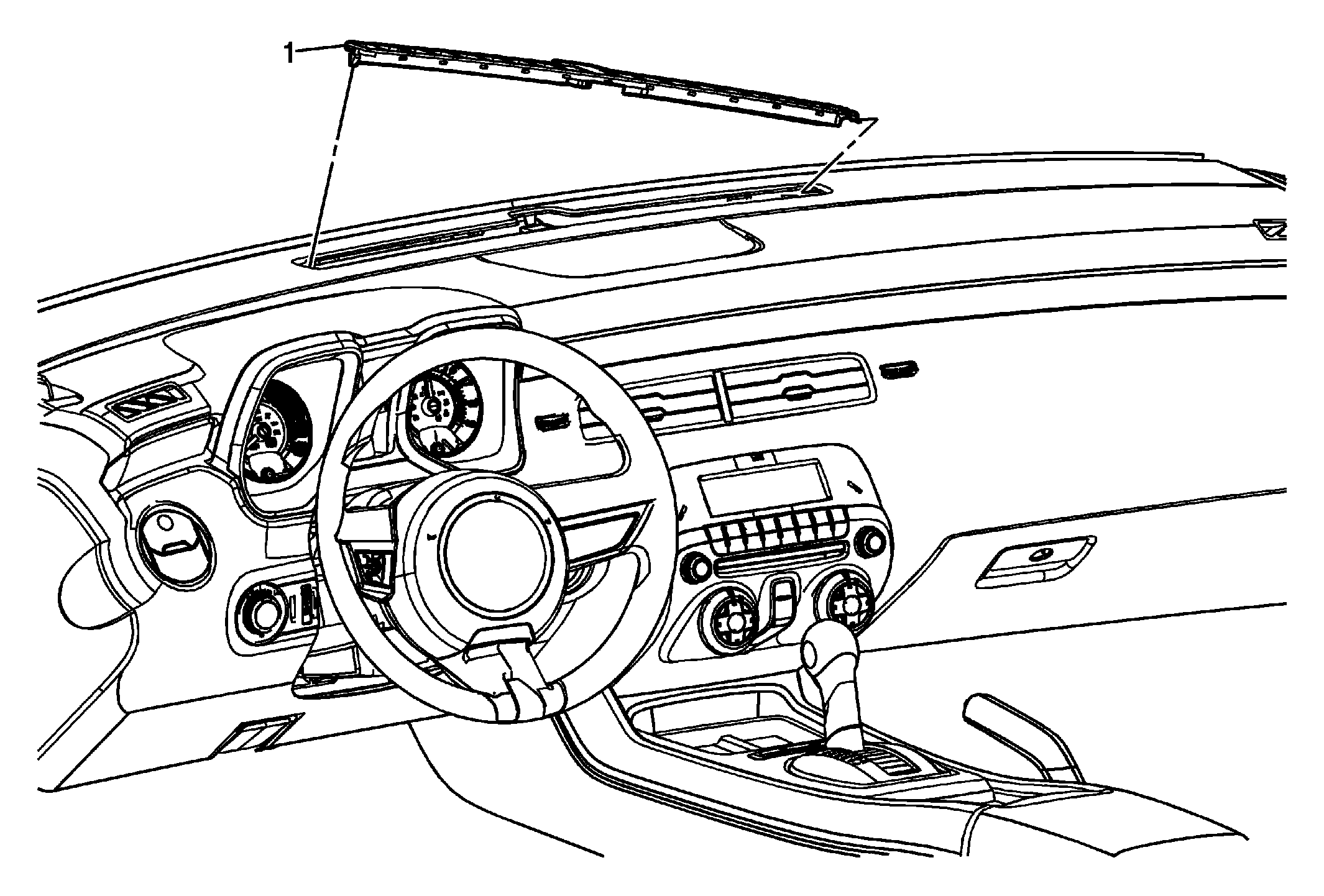

Fig 1: Instrument Panel Center Air Outlet Grille
GM2193466Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Center Air Outlet Grille Replacement

Callout Component Name
1 Instrument Panel Center Air Outlet Grille Assembly

Procedure

  1. Use a flat bladed plastic trim tool and release the clip securing the left side of the grille assembly
  2. Pull the grill assembly to the left releasing the retainer tab on the right side of the grill.
  3. Disconnect the electrical connector.
  4. When replacing the instrument panel center air outlet grille assembly, transfer all necessary components.
