Mass Airflow Sensor with Intake Air Temperature Sensor Replacement (LSA)

WARNING: This page is about a different variant/trim than selected.

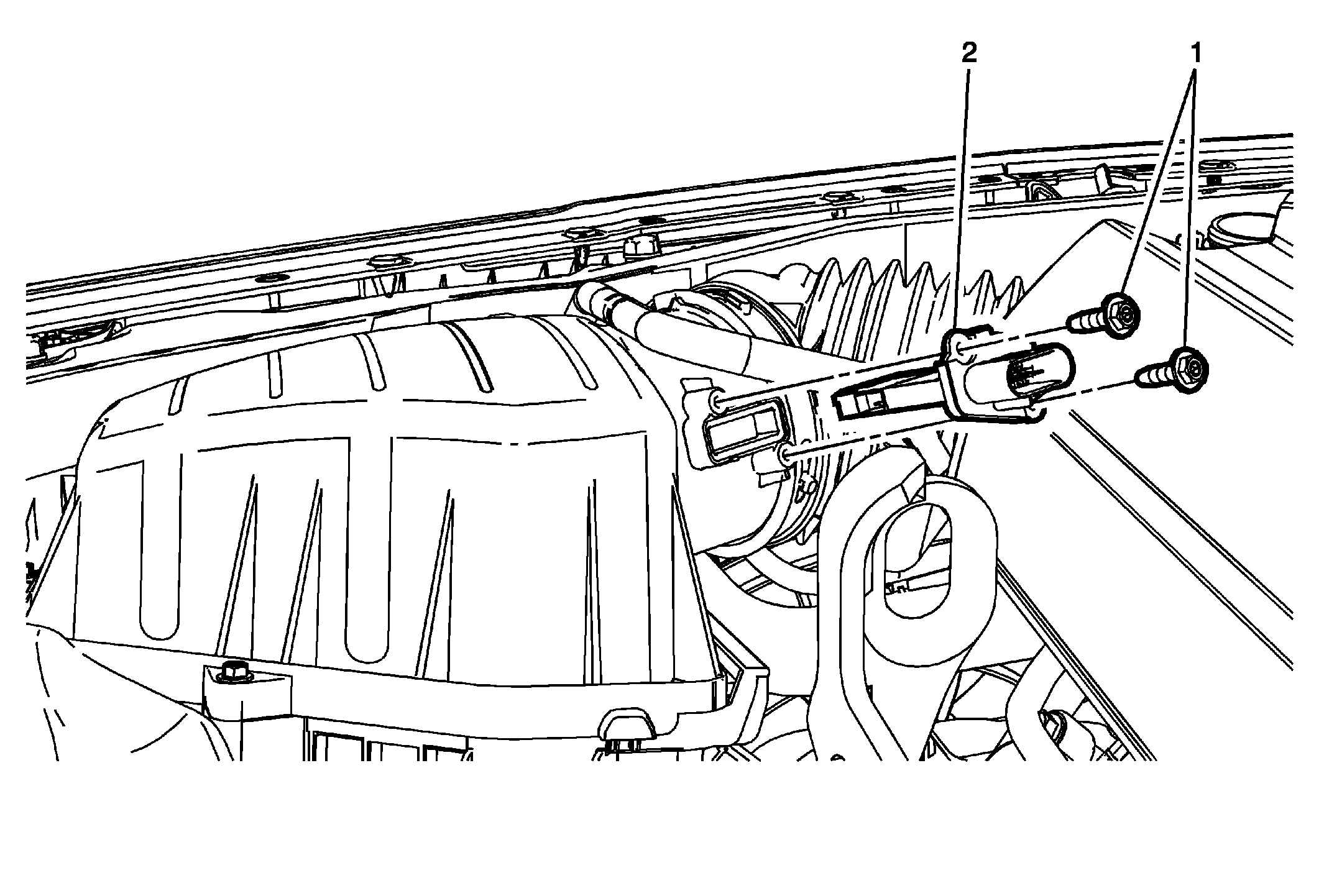

Fig 1: Mass Airflow Sensor/Intake Air Temperature Sensor (LSA)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Mass Airflow with Intake Air Temperature Sensor Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Mass Airflow with Intake Air Temperature Sensor Procedure Disconnect the electrical connector.
