Air Cleaner Resonator and Outlet Duct Replacement (LSA)

WARNING: This page is about a different variant/trim than selected.

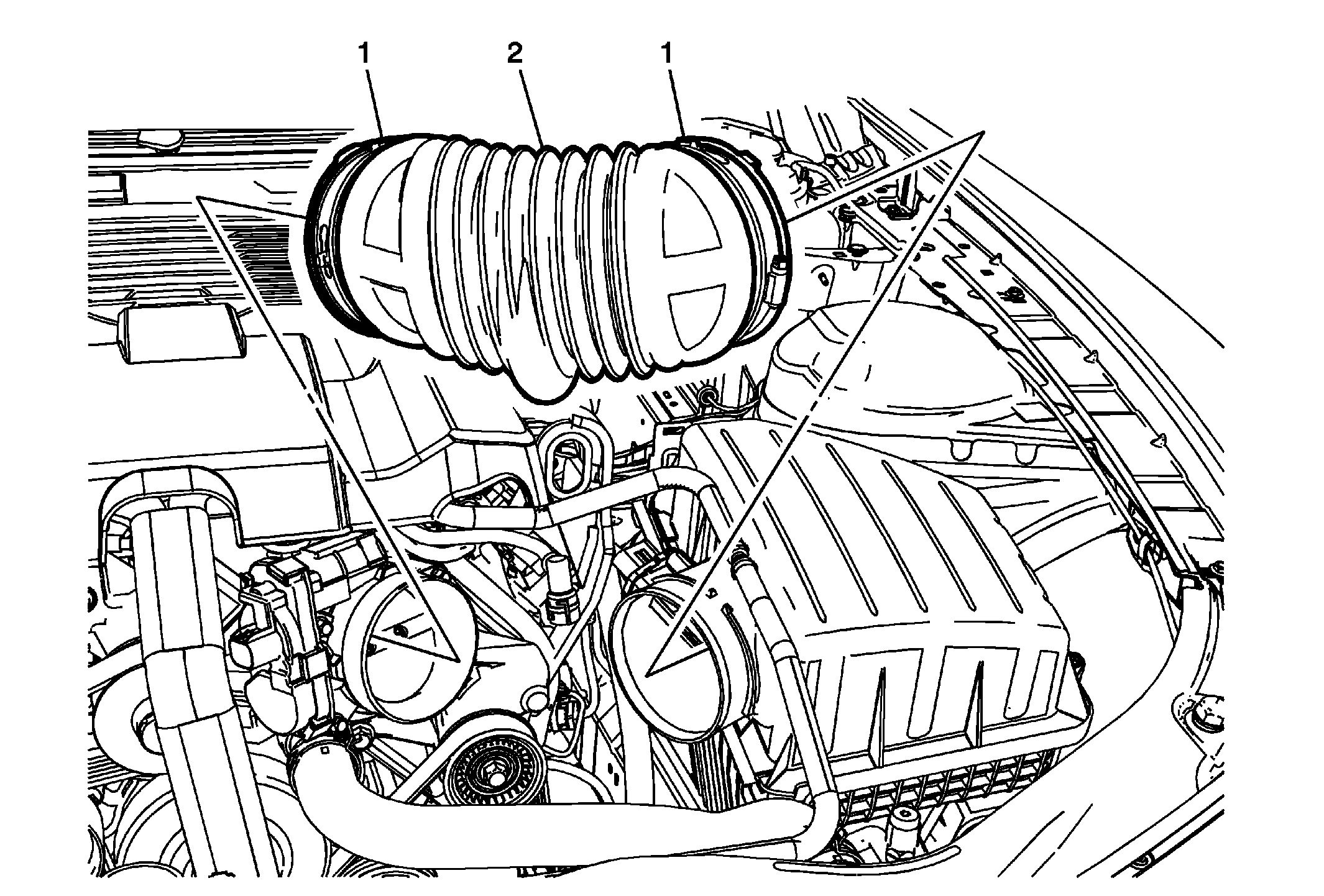

Fig 1: Air Cleaner Resonator & Outlet Duct (LSA)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the positive crankcase ventilation tube from the resonator.
1	Air Cleaner Resonator and Outlet Duct Hose Clamp (Qty: 2) CAUTION: Refer to Fastener Caution
2	Air Cleaner Resonator and Outlet Duct
