X85 Steering Wheel Air Bag Coil X3
 Courtesy of
|

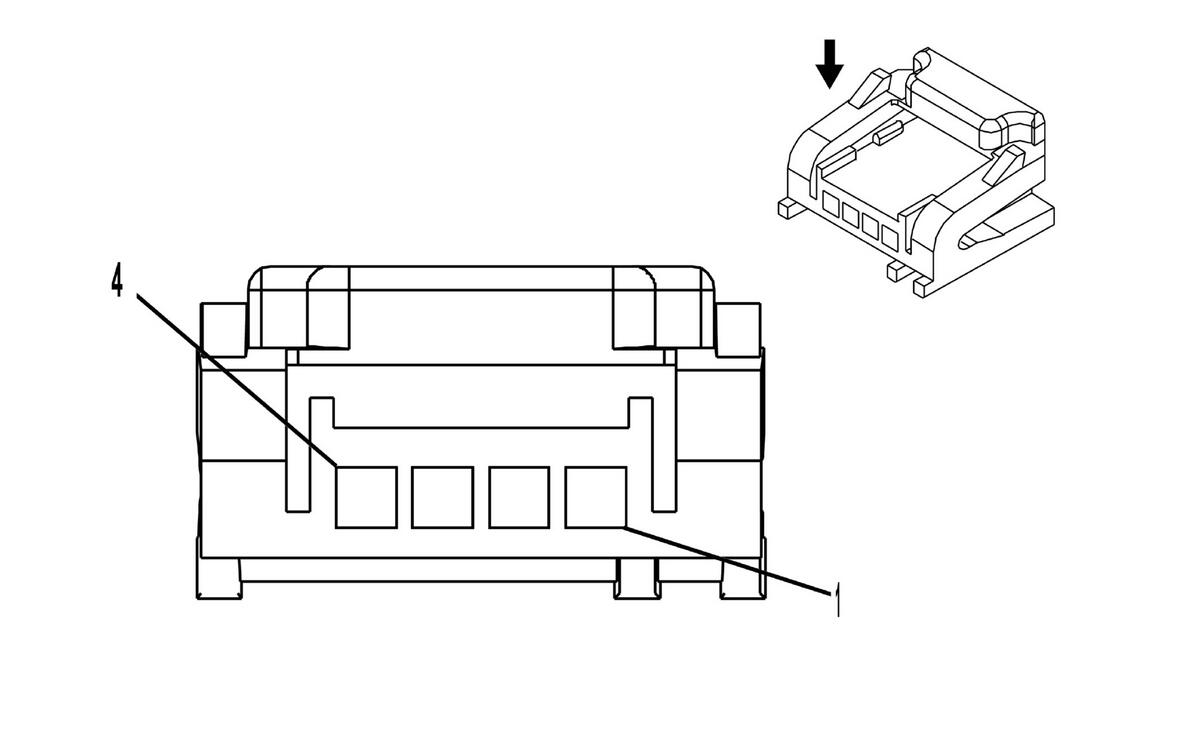

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 15393421
- Service Connector: 13580115
- Description: 4-Way F Micro-Pack 064 Series (YE)
|
Terminal Part Information
- Terminated Lead: Not Available
- Release Tool: Not Available
- Diagnostic Test Probe: J-35616-64B (L-BU)
- Terminal/Tray: Not Available
- Core/Insulation Crimp: E/2
|
X85 Steering Wheel Air Bag Coil X3
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 TN |
3021 |
Steering Wheel Module- Stage1- High Control |
| 2 |
0.35 BN |
3020 |
Steering Wheel Module- Stage1- Low Control |
| 3 |
0.35 WH |
3023 |
Steering Wheel Module- Stage2- High Control |
| 4 |
0.35 PK |
3022 |
Steering Wheel Module- Stage2- Low Control |
