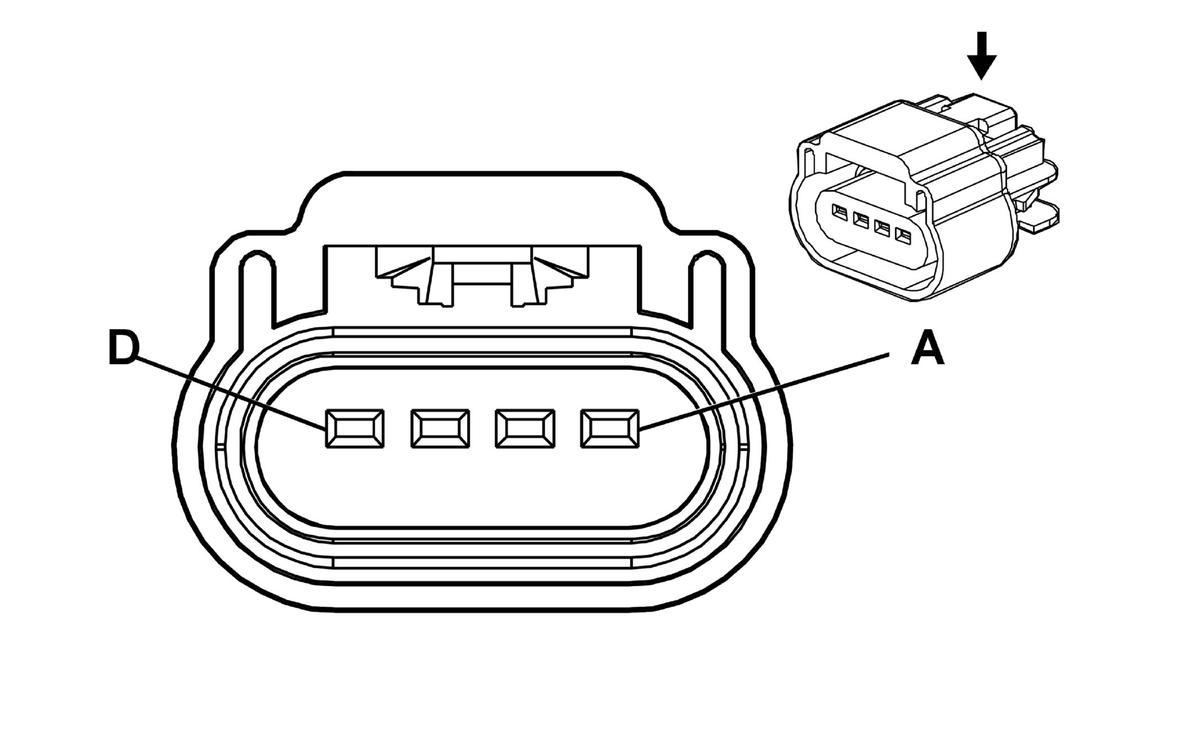

T8F Ignition Coil 6 (LFX)
 Courtesy of
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 15466325
- Service Connector: 13585847
- Description: 4-Way F GT 150 Series, Sealed (BK)
|
Terminal Part Information
- Pins: A, D
- Terminated Lead: 13575412
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-2A (GY)
- Terminal/Tray: 12191819/8
- Core/Insulation Crimp: 2/1
- Pins: B, C
- Terminated Lead: 13575412
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-2A (GY)
- Terminal/Tray: 12191819/8
- Core/Insulation Crimp: E/1
|
T8F Ignition Coil 6 (LFX)
| Pin |
Wire |
Circuit |
Function |
| A |
1 BK |
350 |
Ground |
| B |
0.5 BN/WH |
2130 |
Low Reference |
| C |
0.5 L-BU/WH |
2126 |
IC 6 Control |
| D |
1 PK/BK |
5292 |
Ignition Voltage |
