T7L Headlamp - Ballast Left (TT2)
 Courtesy of
|

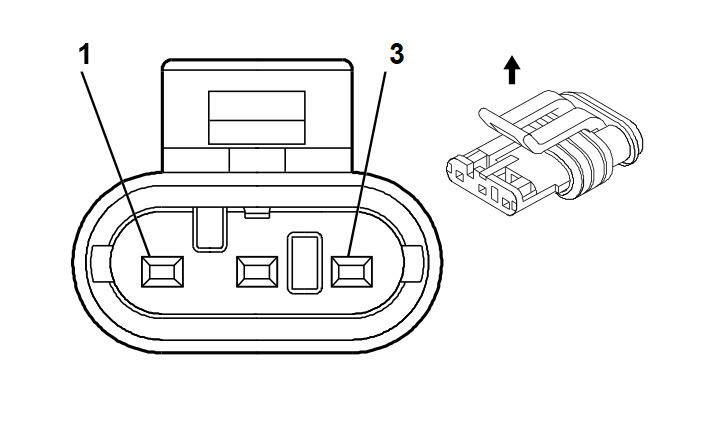

Connector Part Information
- Harness Type: Left Lamp
- OEM Connector: 282087-1
- Service Connector: Service by Harness- See Part Catalog
- Description: 3-Way F Superseal 1.5 Series (BK)
|
Terminal Part Information
- Terminated Lead: Service by Harness- See Part Catalog
- Release Tool: Not Available
- Diagnostic Test Probe: Pending
- Terminal/Tray: Service by Harness- See Part Catalog
- Core/Insulation Crimp: Not Available
|
T7L Headlamp - Ballast Left (TT2)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 L-GN |
711 |
Left High Beam Supply Voltage |
| 2 |
1.0 RD |
712 |
Left Headlamp Low Beam Supply Voltage |
| 3 |
1.0 BK |
1150 |
Ground |
