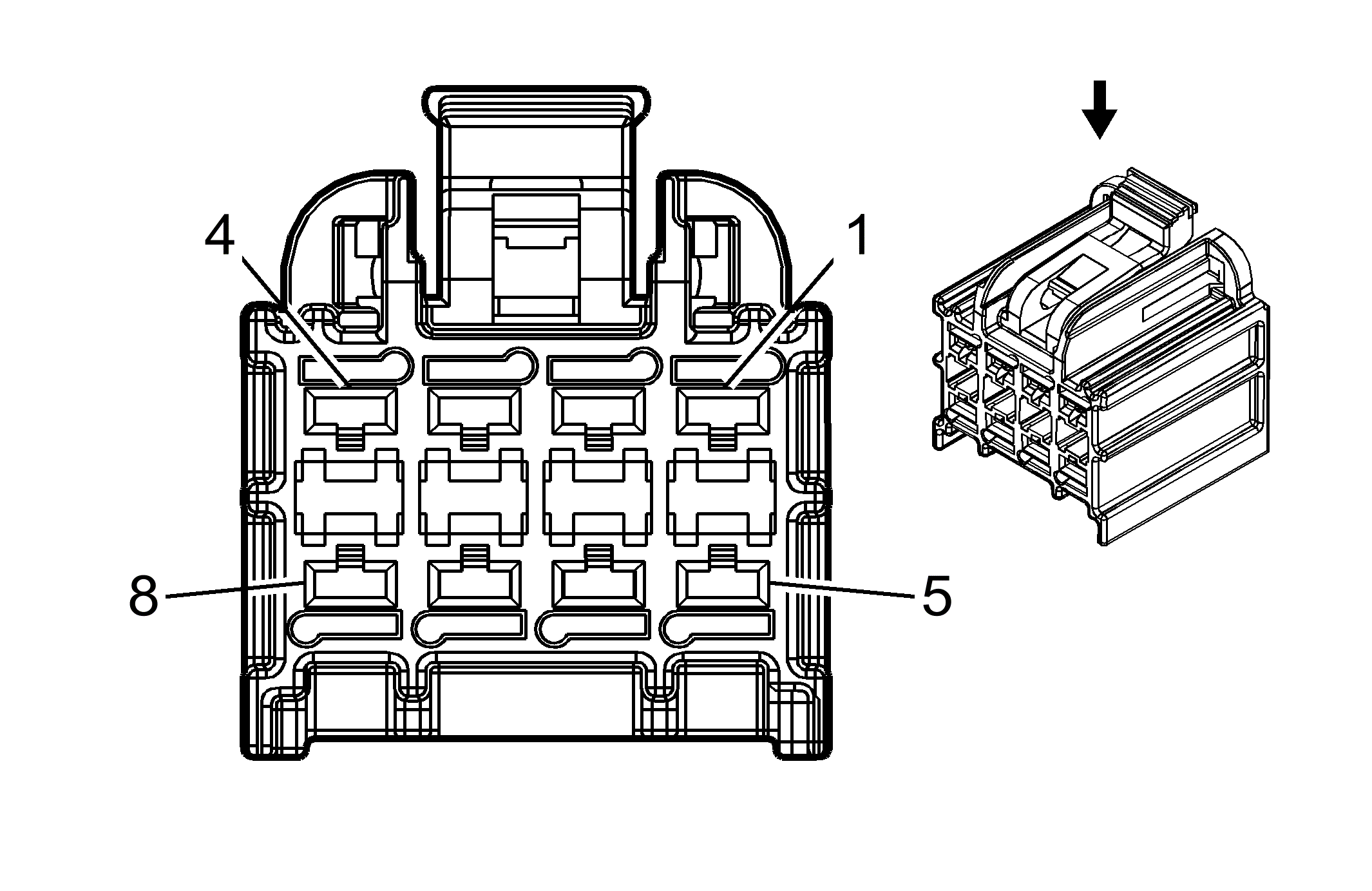

T3 Audio Amplifier X1 (UQA)
 Courtesy of
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13544530
- Service Connector: 13581412
- Description: 8-Way F GT 280 Series (GY)
|
Terminal Part Information
- Pins: 2-3, 6-7
- Terminated Lead: Pending
- Release Tool: J-38125-29 :
- Diagnostic Test Probe: J-35616-4A (PU)
- Terminal/Tray: 13544536/Not Available
- Core/Insulation Crimp: Not Available
- Pins: 4, 8
- Terminated Lead: Pending
- Release Tool: J-38125-29
- Terminal/Tray: Pending
- Release Tool: J-38125-29
- Diagnostic Test Probe: J-35616-4A (PU)
- Terminal/Tray: 13544537/Not Available
- Core/Insulation Crimp: Not Available
|
T3 Audio Amplifier X1 (UQA)
| Pin |
Wire |
Circuit |
Function |
| 1 |
- |
- |
Not Used |
| 2 |
1 L-BU/BK |
315 |
Right Subwoofer Speaker Output (-) |
| 3 |
1 L-GN/BK |
1794 |
Left Subwoofer Speaker Output (-) |
| 4 |
3 RD/WH |
3640 |
Battery Positive Voltage |
| 5 |
- |
- |
Not Used |
| 6 |
1 D-GN |
1795 |
Right Subwoofer Speaker Output (+) |
| 7 |
1 D-BU/WH |
346 |
Left Subwoofer Speaker Output (+) |
| 8 |
3 BK |
550 |
Ground |
