S75 Traction Control Switch
 Courtesy of
|

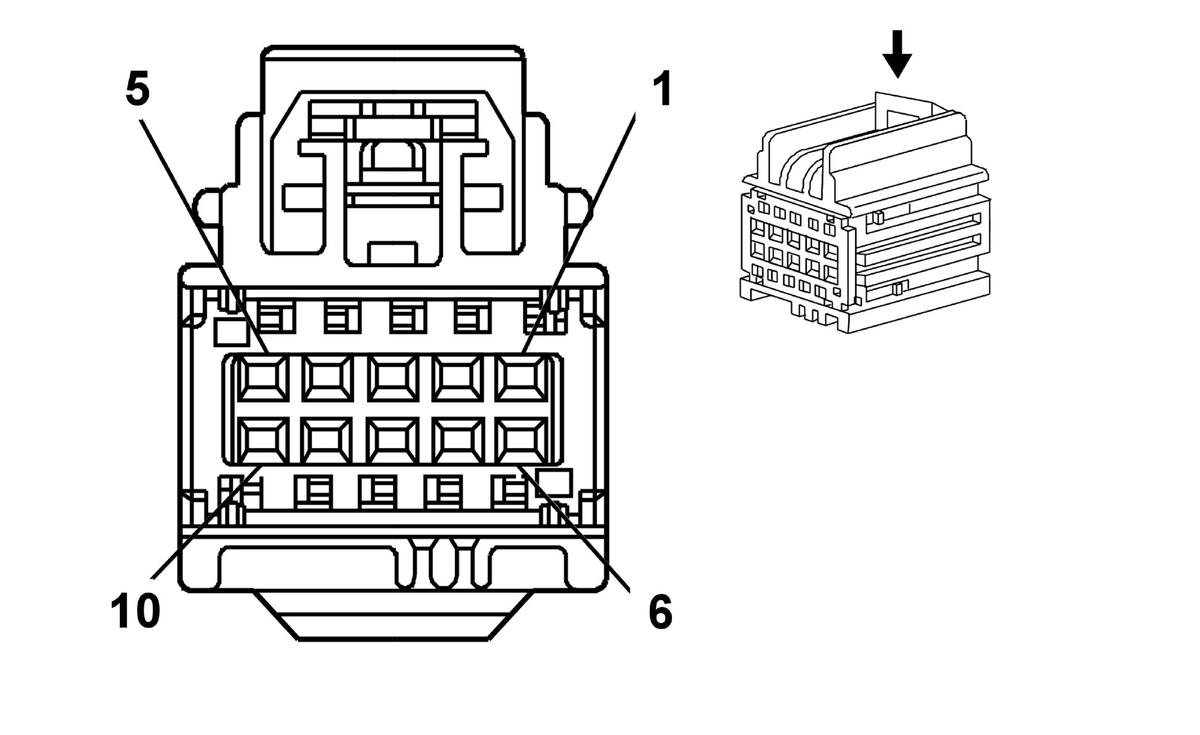

Connector Part Information
- Harness Type: Console Cap Link
- OEM Connector: 15491259
- Service Connector: 15127042
- Description: 10-Way F 0.64 YESC Kaizen Series (BK)
|
Terminal Part Information
- Terminated Lead: 13575867
- Release Tool: J-38125-215A
- Diagnostic Test Probe: J-35616-64B (L-BU)
- Terminal/Tray: SAIT-A03T-M064/14
- Core/Insulation Crimp: P/P
|
S75 Traction Control Switch
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 YE |
6817 |
LED Backlight Dimming Control |
| 2 |
0.35 BK |
1550 |
Ground |
| 3-6 |
- |
- |
Not Used |
| 7 |
0.35 L-BU |
1788 |
Traction Control Switch Signal |
| 8-10 |
- |
- |
Not Used |
