S70L Steering Wheel Controls Switch - Left
 Courtesy of
|

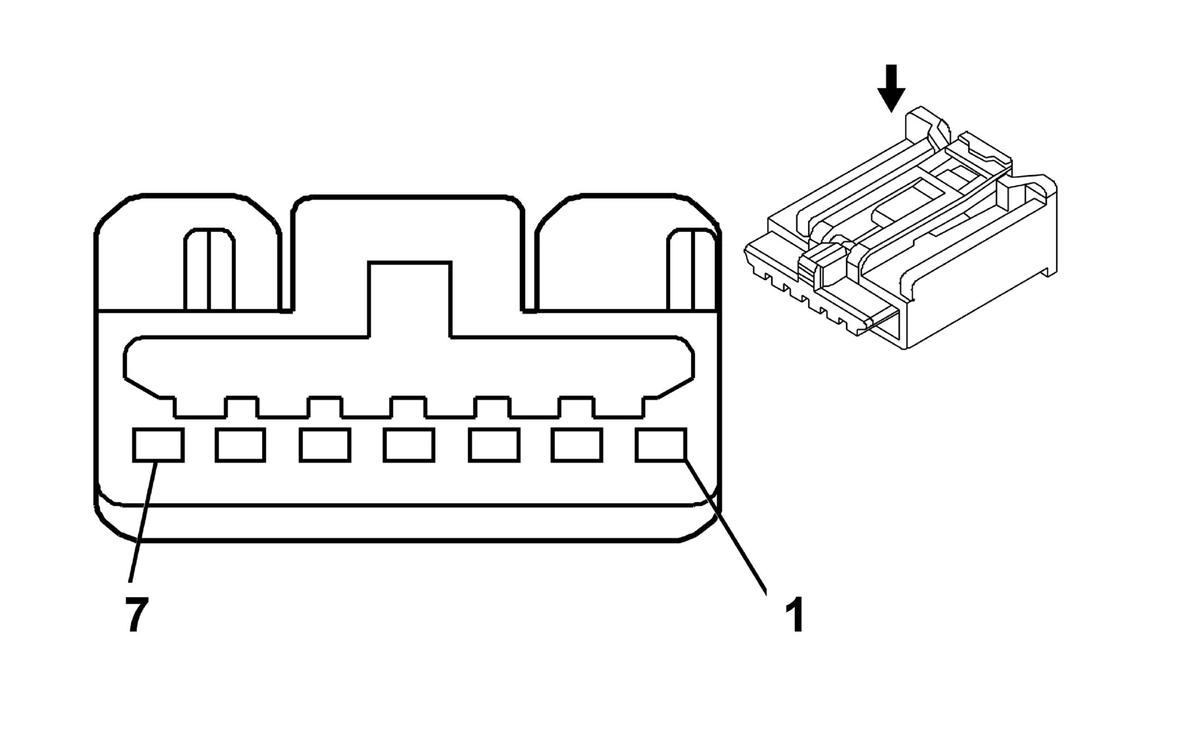

Connector Part Information
- Harness Type: Steering Wheel
- OEM Connector: AIT2PB-07-1FS
- Service Connector: 88988919
- Description: 7-Way F AIT II Series (WH)
|
Terminal Part Information
- Terminated Lead: 13575867
- Release Tool: J-38125-215A
- Diagnostic Test Probe: J-35616-64B (L-BU)
- Terminal/Tray: SAIT-A03T-M064/14
- Core/Insulation Crimp: P/P
|
S70L Steering Wheel Controls Switch - Left
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35WH/RD |
1444 |
12-Volt Reference |
| 2 |
- |
- |
Not Used |
| 3 |
0.35 BN |
1884 |
Cruise Control Switch Signal |
| 4-5 |
- |
- |
Not Used |
| 6 |
0.35 TN |
6136 |
LED Backlight Dimming Control |
| 7 |
0.35 BK |
1550 |
Ground |
