S2R Transmission Manual Shift Switch - Right (WZI)
 Courtesy of
|

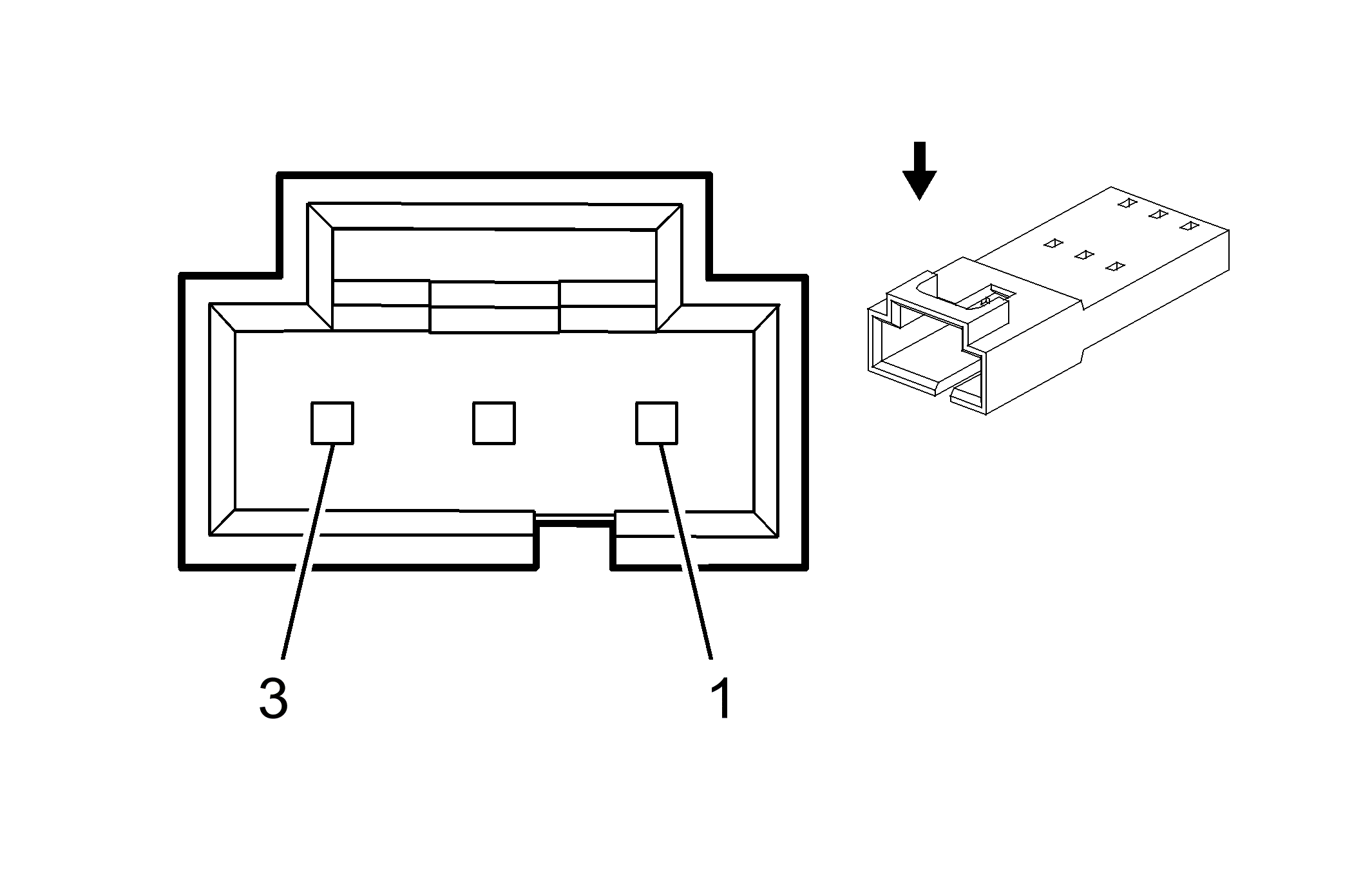

Connector Part Information
- Harness Type: Steering Wheel
- OEM Connector: 103653-2
- Service Connector: Service by Harness- See Part Catalog
- Description: 3-Way M MTE Series (BK)
|
Terminal Part Information
- Terminated Lead: Service by Harness- See Part Catalog
- Release Tool: Not Available
- Diagnostic Test Probe: J-35616-64B (L-BU)
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|
S2R Transmission Manual Shift Switch - Right (WZI)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 BK |
1550 |
Ground |
| 2 |
0.35 PU |
5526 |
Tap Up/Tap Down Switch Signal |
| 3 |
0.35 D-BU/RD |
5525 |
Tap Up/Tap Down Enabled Signal |
