Q37RF Shock Absorber Actuator - Right Front (F55)
 Courtesy of
|

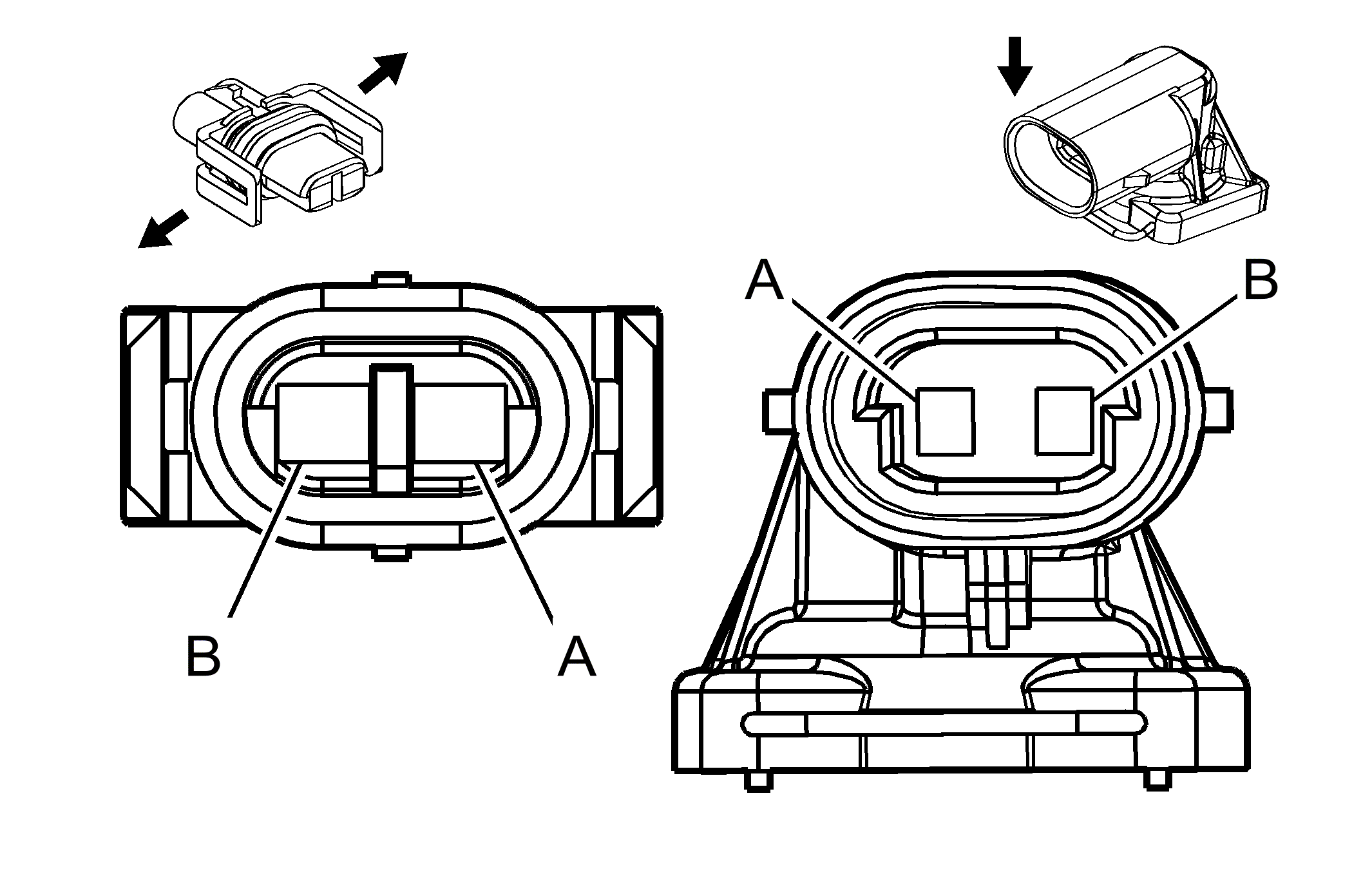

Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 15305168
- Service Connector: 12167117
- Description: 2-Way F Metri-Pack 150 Series (GY)
- Suspension Damper Adapter
- OEM Connector: 13543518
- Service Connector: 13586171
- Description: 2-Way M Metri-Pack 150 Series, Sealed (GY)
|
Terminal Part Information
- Terminated Lead: 13575427
- Release Tool: J-38125-12A
- Diagnostic Test Probe: J-35616-14 (GN)
- Terminal/Tray: 12048074/2
- Core/Insulation Crimp: E/1
|
Q37RF Shock Absorber Actuator - Right Front (F55)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 L-BU/WH |
1116 |
Right Front Damper Control |
| 2 |
0.35 GY |
1117 |
Low Reference |
