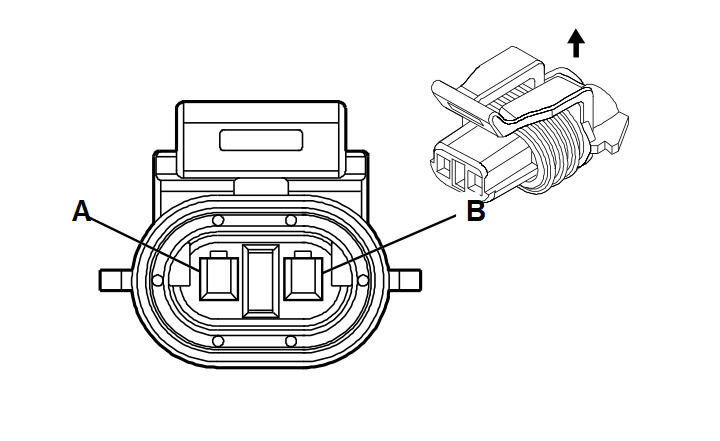

Q34 Skip Shift Solenoid Actuator (M10)
 Courtesy of
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 12052646
- Service Connector: 12101857
- Description: 2-Way F Metri-Pack 150 Sealed (WH)
|
Terminal Part Information
- Terminated Lead: 13575427
- Release Tool: J-38125-12A
- Diagnostic Test Probe: J-35616-14 (GN)
- Terminal/Tray: 12048074/2
- Core/Insulation Crimp: E/1
|
Q34 Skip Shift Solenoid Actuator (M10)
| Pin |
Wire |
Circuit |
Function |
| A |
0.5 PK |
239 |
Ignition Voltage |
| B |
0.5 GY |
587 |
Skip/Shift Solenoid Control |
