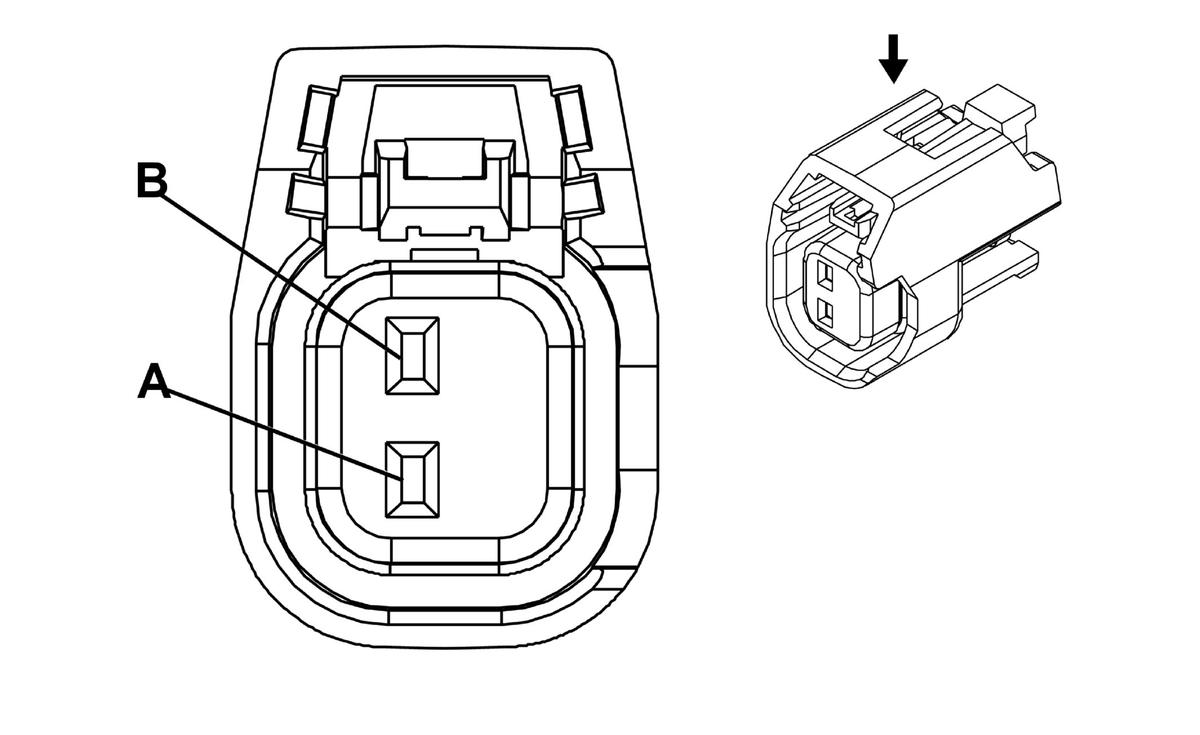

Q17A Fuel Injector 1 (L99, LS3 or LSA)
 Courtesy of
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 15419715
- Service Connector: 13580876
- Description: 2-Way F GT 150 Series, Sealed (GY)
|
Terminal Part Information
- Terminated Lead: 13575412
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-2A (GY)
- Terminal/Tray: 12191819/8
- Core/Insulation Crimp: E/1
|
Q17A Fuel Injector 1 (L99, LS3 or LSA)
| Pin |
Wire |
Circuit |
Function |
| A |
0.5 PK/BK |
5291 |
Ignition Voltage |
| B |
0.5 TN |
1744 |
Fuel Injector 1 Control |
