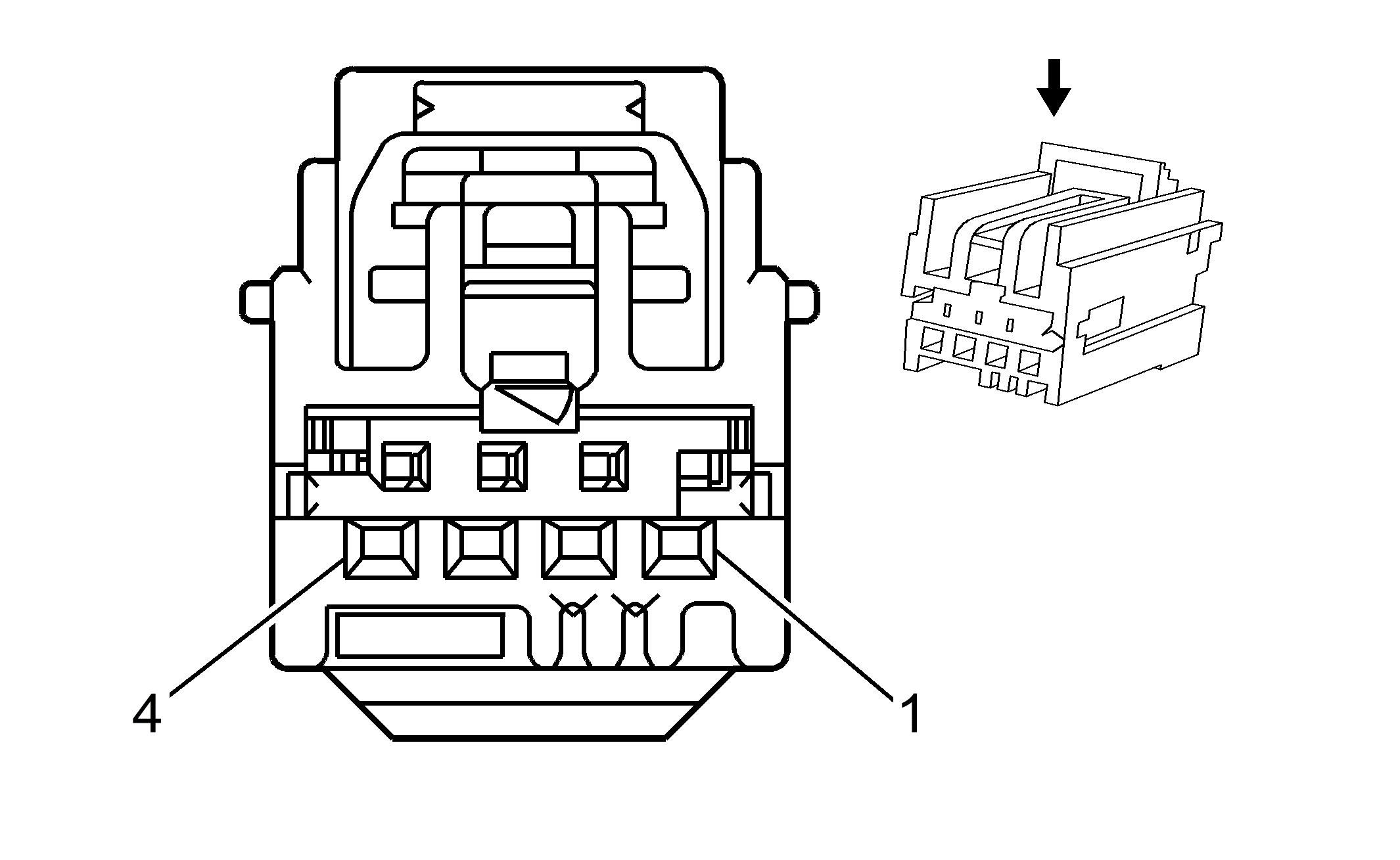

P26 Auxiliary Gauge Module (UMQ) or (UMZ/UNZ) LSA
 Courtesy of
|
Connector Part Information
- Harness Type: Console Cap Link
- OEM Connector: 15491295
- Service Connector: 19149305
- Description: 4-Way F 64 Series (BK)
|
Terminal Part Information
- Terminated Lead: 13575867
- Release Tool: J-38125-215A
- Diagnostic Test Probe: J-35616-64B (L-BU)
- Terminal/Tray: SAIT-A03T-M064/14
- Core/Insulation Crimp: P/P
|
P26 Auxiliary Gauge Module (UMQ) or (UMZ/UNZ) LSA
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 RD/WH |
2840 |
Battery Positive Voltage |
| 2 |
0.5 BK |
1650 |
Ground |
| 3 |
0.35 D-GN |
5060 |
Low Speed GMLAN Serial Data |
| 4 |
- |
- |
Not Used |
