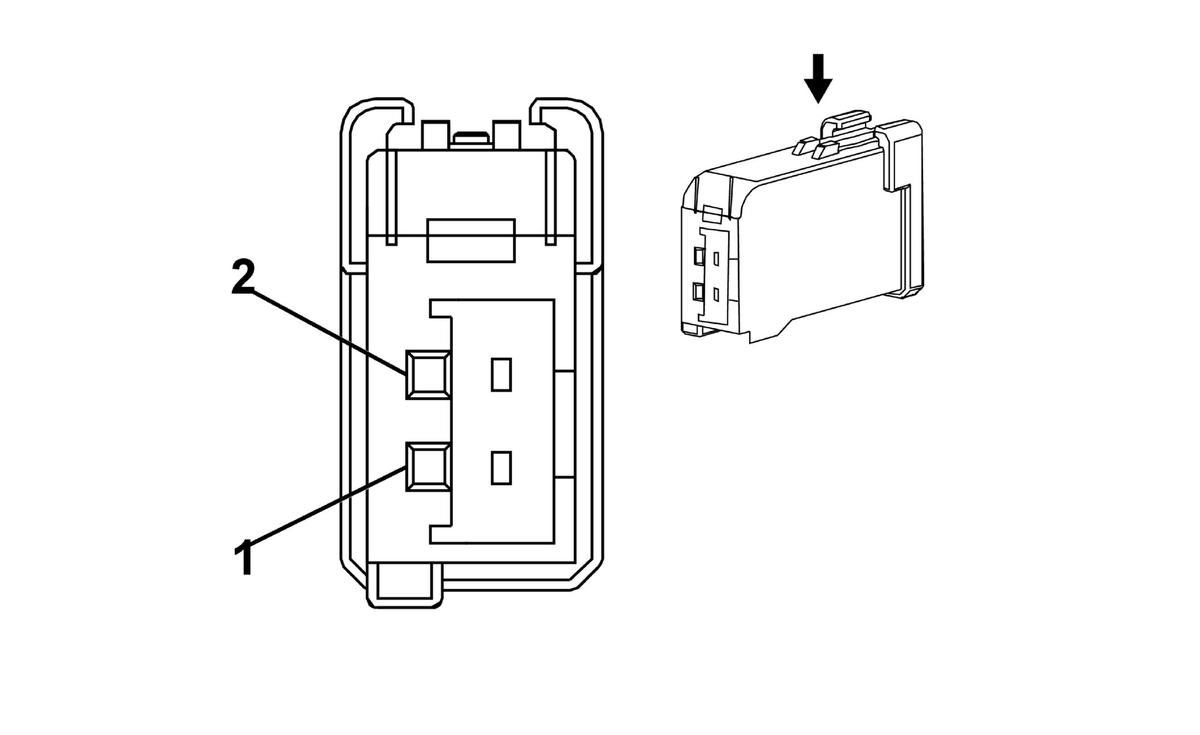

P19V Speaker - Right Front Tweeter
 Courtesy of
|
Connector Part Information
- Harness Type: Passenger Door
- OEM Connector: 13595633
- Service Connector: 13314093
- Description: 2-Way F Kaizen 64 Series (BK)
|
Terminal Part Information
- Terminated Lead: 13575867
- Release Tool: J-38125-215A
- Diagnostic Test Probe: J-35616-64B (L-BU)
- Terminal/Tray: SAIT-A03T-M064/14
- Core/Insulation Crimp: P/P
|
P19V Speaker - Right Front Tweeter
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 D-GN |
117 |
Right Front Speaker Output (-) |
| 2 |
0.5 L-GN |
200 |
Right Front Speaker Output (+) |
