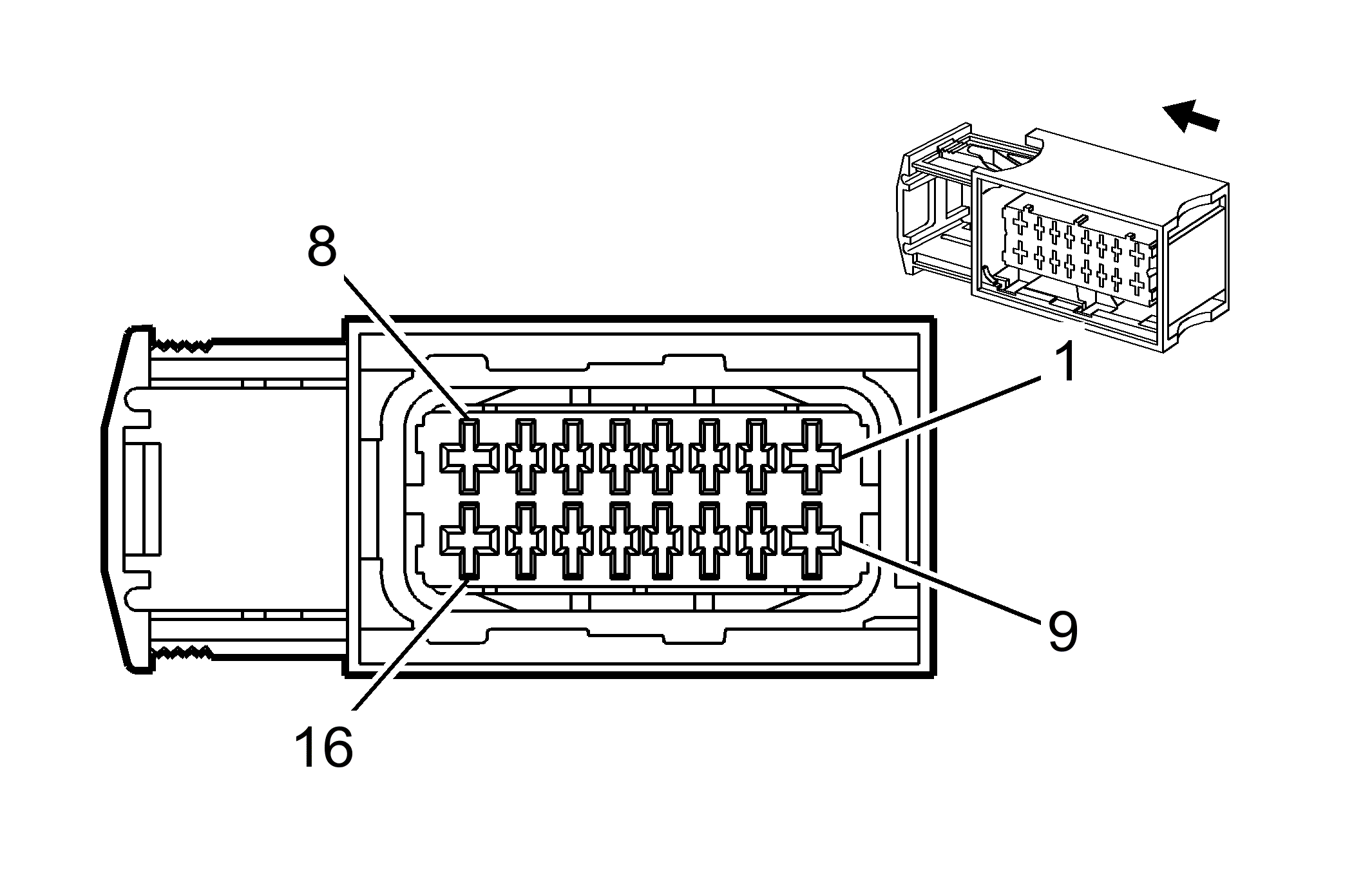

P19AC Speaker - Subwoofer (Convertible with UQ3)
 Courtesy of
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 10738888
- Service Connector: 13584254
- Description: 16-Way F 1.5/2.8 SICMA-2 Series (WH)
|
Terminal Part Information
- Terminated Lead: Pending
- Release Tool: Pending
- Diagnostic Test Probe: Pending
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|
P19AC Speaker - Subwoofer (Convertible with UQ3)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.8 L-BU |
115 |
Right Rear Speaker Signal (-) |
| 2 |
0.8 D-BU |
46 |
Right Rear Speaker (+) |
| 3-6 |
- |
- |
Not Used |
| 7 |
0.35 WH |
7066 |
Entertainment Remote Enable Signal |
| 8 |
3 BK |
550 |
Ground |
| 9 |
0.8 YE |
116 |
Left Rear Speaker Signal (-) |
| 10 |
0.8 BN |
199 |
Left Rear Speaker (+) |
| 11-15 |
- |
- |
Not Used |
| 16 |
2 RD/WH |
3640 |
Battery Positive Voltage |
