P16 Instrument Cluster

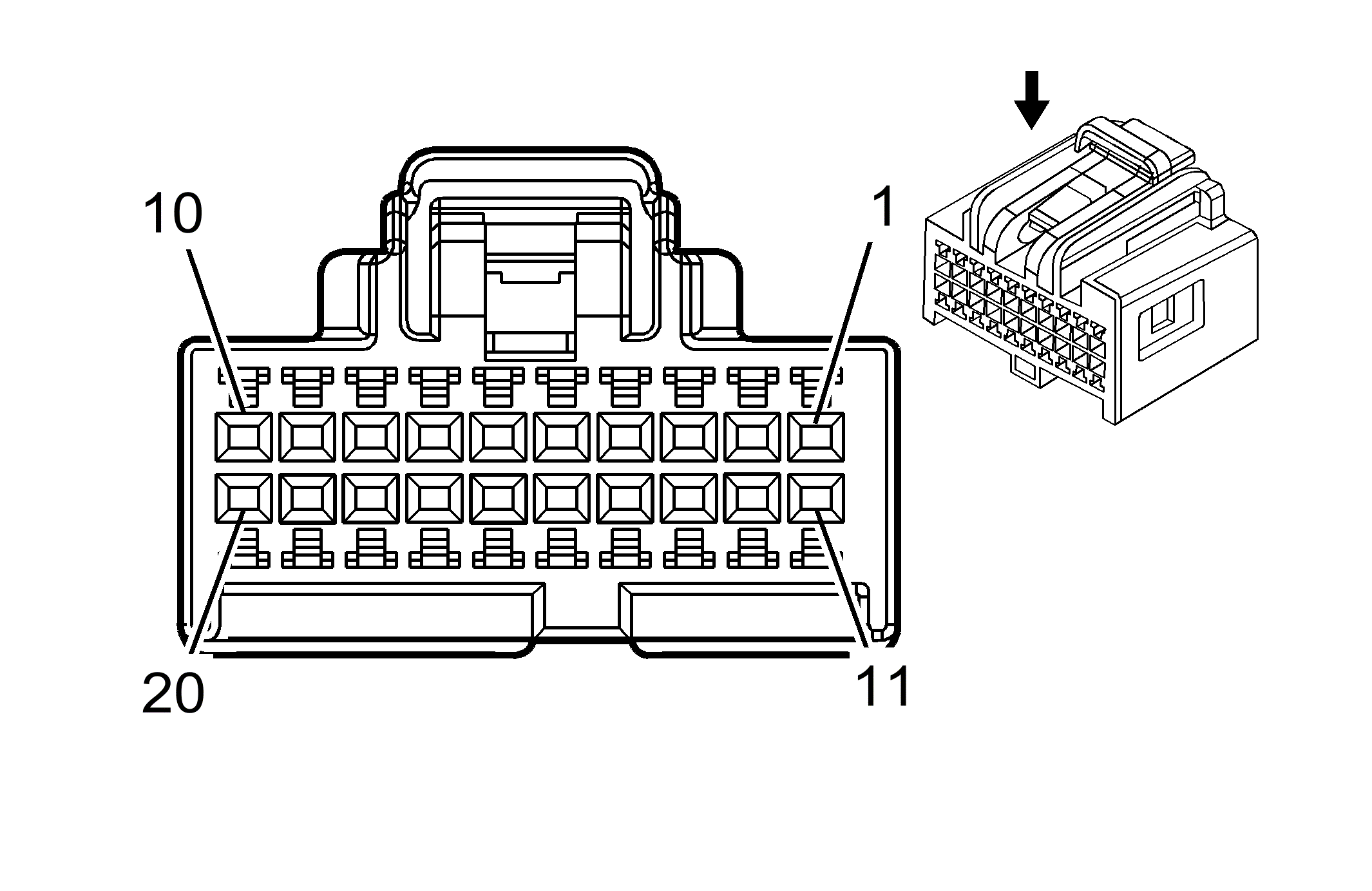

GM2506402

Courtesy of

Connector Part Information

Harness Type: Instrument Panel
OEM Connector: 13782499
Service Connector: 13578570
Description: 20-Way F Micro HVT Series (BK)

Terminal Part Information

Terminated Lead: 13575550
Release Tool: J-38125-559
Diagnostic Test Probe: J-35616-16 (L-GN)
Terminal/Tray: 15445905/23
Core/Insulation Crimp: J/J

P16 Instrument Cluster

Pin	Wire	Circuit	Function
1	0.35 D-GN	5060	Low Speed GMLAN Serial Data
2-3	-	-	Not Used
4	0.35 D-GN/WH	1358	DIC Switch Signal
5	0.35 BN	897	Low Reference
6	0.5 YE	61	Low Reference
7	0.5 D-GN/WH	636	Ambient Air Temperature Sensor Signal
8-9	-	-	Not Used
10	0.5 BK	1650	Ground
11-15	-	-	Not Used
16	0.35 PK	893	DIC Select Menu Switch Signal
17	0.5 BN/WH	419	MIL Control
18	-	-	Not Used
19	0.35 PK	139	Ignition 1 Voltage
20	0.5 RD/WH	2840	Battery Positive Voltage
