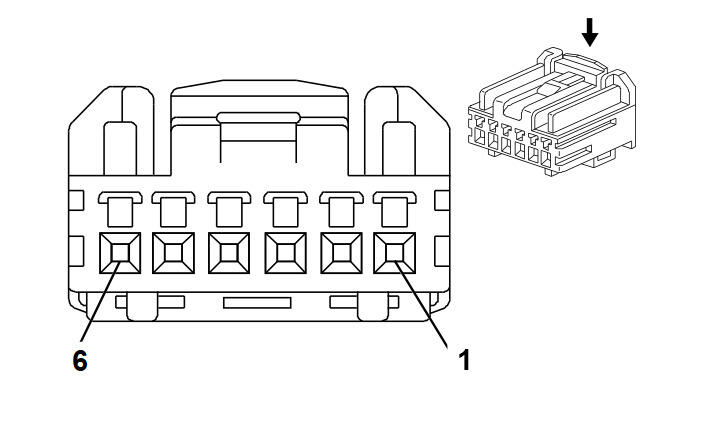

P14 Passenger Air Bag Disable Indicator

Courtesy of

Connector Part Information Harness Type:Headliner OEM Connector: 13608102 Service Connector: 19153174 Description: 6-Way F 1.2 HCM Series (NA)

Terminal Part Information Terminated Lead: 13575868 Release Tool: J-38125-12A Diagnostic Test Probe: J-35616-64B (L-BU) Terminal/Tray: SHCM-A03T-P025/20 Core/Insulation Crimp: J/J

P14 Passenger Air Bag Disable Indicator

Pin	Wire	Circuit	Function
1	0.35 D-BU	2307	Passenger Air Bag On Indicator Control
2	0.35 BK	1550	Ground
3	0.35 D-GN	2308	Passenger Air Bag Off Indicator Control
4	0.35 PK	339	Ignition Voltage
5	0.35 PU	5234	Front Passenger Seat Belt Indicator Control
6	-	-	Not Used
