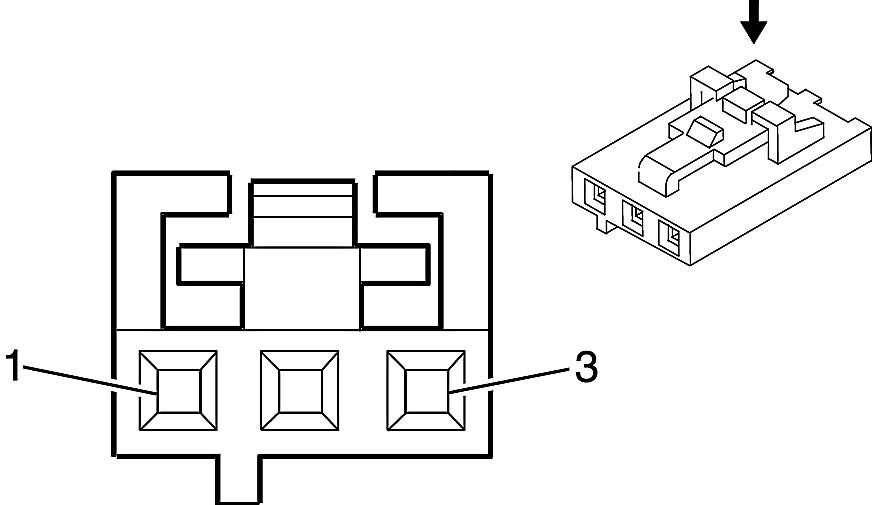

M77D Outside Rearview Mirror Motor - Driver
 Courtesy of
|
Connector Part Information
- Harness Type: Outside Rearview Mirror- Driver
- OEM Connector: 50-57-9403
- Service Connector: 21019417
- Description: 3-Way F SL Series (BK)
|
Terminal Part Information
- Terminal/Tray: Service by Connector Assembly- 21019417
- Core/Insulation Crimp: Not Available
- Release Tool: Not Available
- Test Probe: J35616-64B (BU)
- Core Insulation/Crimp: Not Available
|
A9A Outside Rearview Mirror - Driver
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 WH |
81 |
Driver Mirror Motor Right Control |
| 2 |
0.5 GY |
329 |
Driver Mirror Motor Left/Up Control |
| 3 |
0.5 YE |
89 |
Driver Mirror Motor Down Control |
