M75 Windshield Wiper Motor
 Courtesy of
|

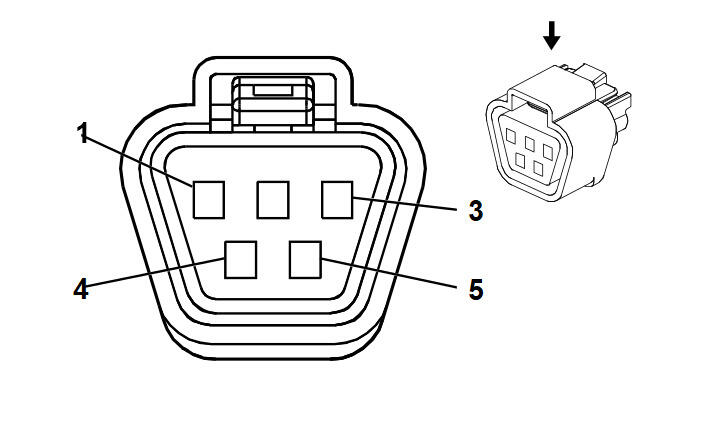

Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 15316488
- Service Connector: 13585618
- Description: 5-Way F 090 Series, Sealed (GY)
|
Terminal Part Information
- Pin: 1
- Terminated Lead: Pending
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-14 (GN)
- Terminal/Tray: 8100-0594/6
- Core/Insulation Crimp: Not Available
- Pins: 3, 4, 5
- Terminated Lead: Pending
- Release Tool: J-38125-552
- Diagnostic Test Probe: J-35616-18 (BK)
- Terminal/Tray: 7116-4027/11
- Core/Insulation Crimp: 2/5
|
M75 Windshield Wiper Motor
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 YE |
196 |
Windshield Wiper Motor Park Switch Signal |
| 2 |
- |
- |
Not Used |
| 3 |
2 PU |
92 |
Windshield Wiper Motor High Speed |
| 4 |
2 BK |
1350 |
Ground |
| 5 |
2 D-GN |
95 |
Windshield Wiper Motor Low Speed |
