M74D Window Motor - Driver
 Courtesy of
|

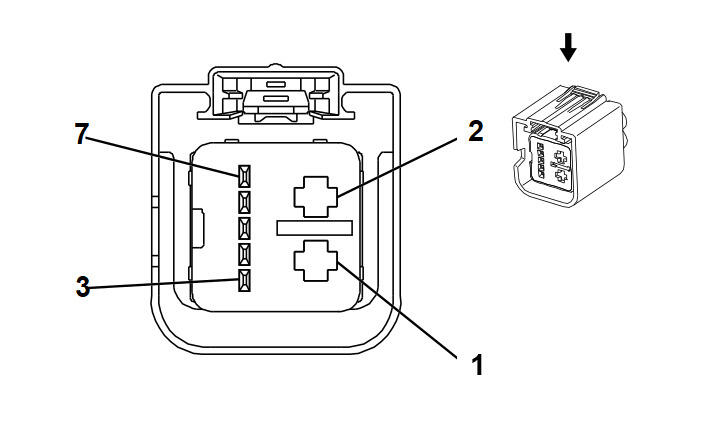

Connector Part Information
- Harness Type: Driver Door
- OEM Connector: 13595813
- Service Connector: Service by Harness- See Part Catalog
- Description: 7-Way F Kaizen 0.64 2.8 Timer Series, Sealed (BK)
|
Terminal Part Information
- Pins: 1, 2
- Terminated Lead: 13580821
- Release Tool: J-38125-36
- Diagnostic Test Probe: J-35616-35 (VT)
- Terminal/Tray: 4-964273-1/15
- Core/Insulation Crimp: C/5
- Pins: 3, 4, 5, 6, 7
- Terminated Lead: 13575867
- Release Tool: J-38125-215A
- Diagnostic Test Probe: J-35616-64B (L-BU)
- Terminal/Tray: SAIT-A03T-M064/14
- Core/Insulation Crimp: P/P
|
M74D Window Motor - Driver
| Pin |
Wire |
Circuit |
Function |
| 1 |
3 BK |
850 |
Ground |
| 2 |
3 RD/WH |
1240 |
Battery Positive Voltage |
| 3 |
0.35 TN |
1300 |
Power Window Master Switch Left Front Up Signal |
| 4 |
0.35 D-GN |
6134 |
Linear Interconnect Network 3 |
| 5 |
0.35 L-GN/RD |
7628 |
Power Window Switch Express Signal |
| 6 |
0.35 GY/BK |
745 |
Left Front Door Ajar Switch Signal |
| 7 |
0.35 GY |
1136 |
Power Window Master Switch Left Front Down Signal |
