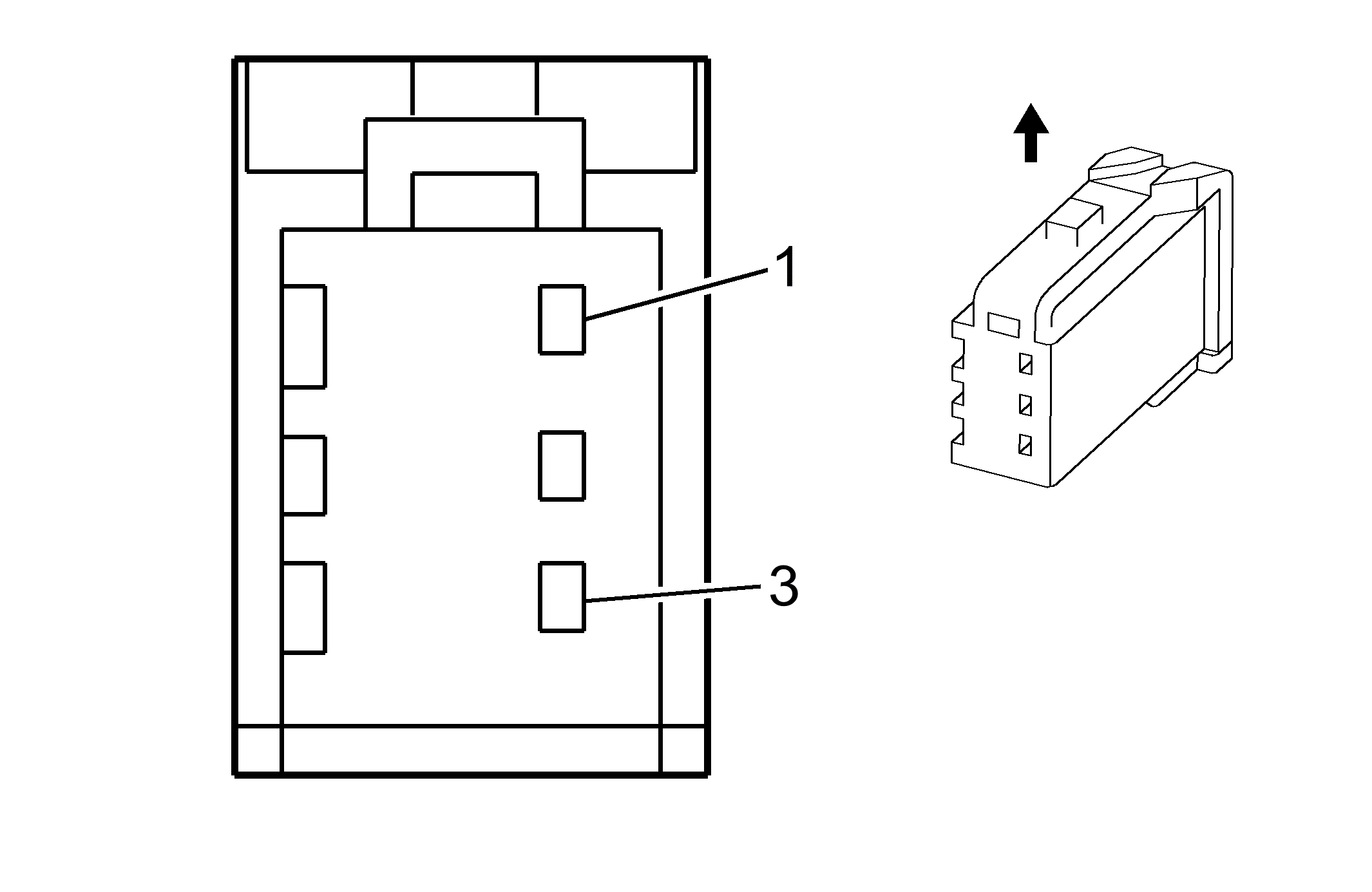

M7 Transmission Shift Lock Control Solenoid Actuator (MYB or MYC)
 Courtesy of
|
Connector Part Information
- Harness Type: Automatic Transmission Shift Lever Jumper
- OEM Connector: 90000223
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F WH
|
Terminal Part Information
- Terminated Lead: Service by Harness - See Part Catalog
- Release Tool: Not Available
- Diagnostic Test Probe: J-35616-64B (L-BU)
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|
M7 Transmission Shift Lock Control Solenoid Actuator (MYB or MYC)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 BK |
1550 |
Ground |
| 2 |
- |
- |
Not Used |
| 3 |
0.35 TN |
7553 |
Automatic Transmission Shift Lock Control Solenoid Control |
