M28L High Beam Solenoid Actuator- Left (T4F)
 Courtesy of
|
Connector Part Information
- Harness Type: Left Lamp
- OEM Connector: 7323-7624-30
- Service: Service by Harness- See Part Catalog
- Description: 2-Way F MQS Series (BK)
|
Terminal Part Information
- Terminated Lead: Service by Harness- See Part Catalog
- Release Tool: Not Available
- Diagnostic Test Probe: Pending
- Terminal/Tray: Service by Harness- See Part Catalog
- Core/Insulation Crimp: Not Available
|

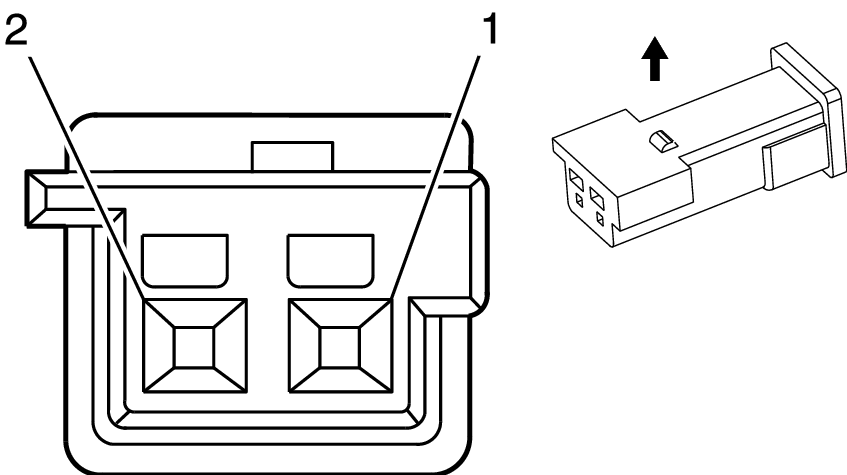

M28L High Beam Solenoid Actuator- Left (T4F)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 BK |
1150 |
Ground |
| 2 |
0.5 GN |
711 |
Left Headlamp High Beam Supply Voltage |
