M10 Charge Air Cooling Coolant Pump (LSA)
 Courtesy of
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 9408621
- Service Connector: Pending
- Description: 5-Way F 1.2 MLK Series, Sealed (BK)
|
Terminal Part Information
- Terminated: Not Available
- Release Tool: J-38125-21
- Diagnostic Test Probe: J-35616-16 (L-GN)
- Terminal/Tray: Pending
- Core/Insulation Crimp: Not Available
|

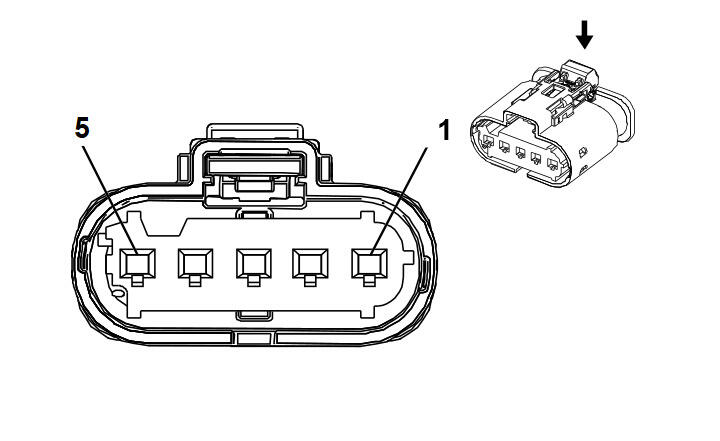

M10 Charge Air Cooling Coolant Pump (LSA)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 TN |
2022 |
Coolant Pump Control |
| 2 |
- |
- |
Not Used |
| 3 |
- |
- |
Not Used |
| 4 |
0.5 BK |
2650 |
Ground |
| 5 |
0.5 TN |
2022 |
Coolant Pump Control |
