K82 Mobile Telephone Control Module (UPH)
 Courtesy of
|

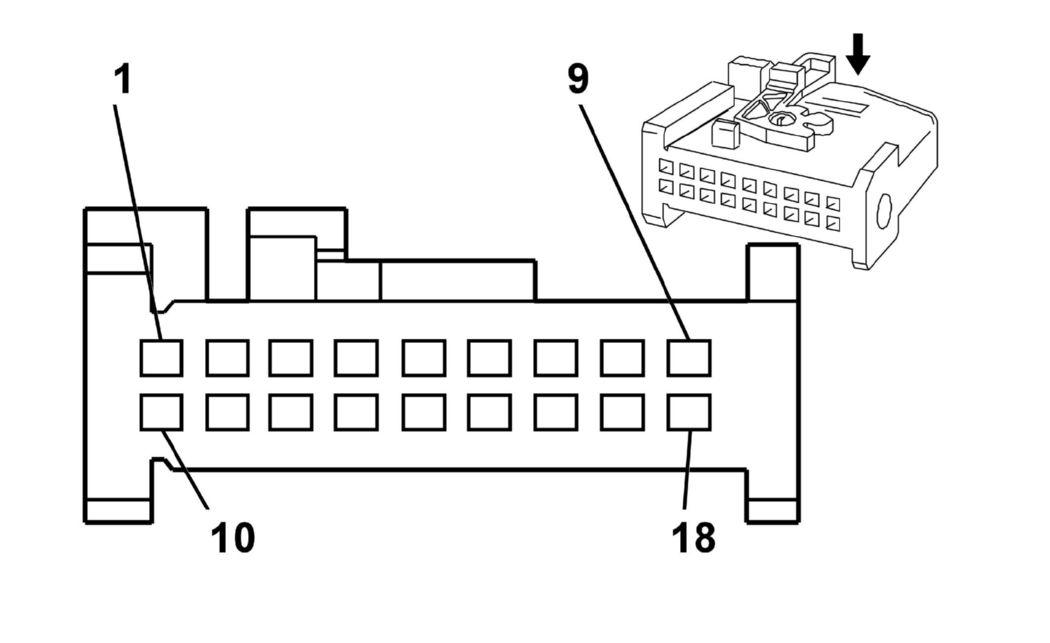

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 10819936
- Service Connector: 13576561
- Description: 18-Way F MQS Series (BK)
|
Terminal Part Information
- Pins: 1, 3-9, 12, 13, 15
- Terminated Lead: 13575782
- Release Tool: J-38125-12A
- Diagnostic Test Probe: J-35616-64B (L-BU)
- Terminal/Tray: 928999-5/15
- Core/Insulation Crimp: H/H
- Pin: 2
- Terminated Lead: 13327122
- Release Tool: Pending
- Diagnostic Test Probe: Pending
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|
K82 Mobile Telephone Control Module (UPH)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 RD/WH |
5340 |
Battery Positive Voltage |
| 2 |
0.8 BK |
1750 |
Ground |
| 3 |
0.35 BN/WH |
5169 |
Mid Speed GMLAN Serial Data (+) |
| 4 |
0.35 BN |
5170 |
Mid Speed GMLAN Serial Data (-) |
| 5 |
0.35 BARE |
1782 |
Drain Wire |
| 6 |
0.35 D-BU |
658 |
Cellular Telephone Voice Signal |
| 7 |
0.35 BARE |
1792 |
Drain Wire |
| 8 |
0.35 D-GN |
654 |
Low Reference |
| 9 |
0.35 GY |
655 |
Cellular Telephone Microphone Signal |
| 10-11 |
- |
- |
Not Used |
| 12 |
0.35 BN/WH |
5169 |
Mid Speed GMLAN Serial Data (+) |
| 13 |
0.35 BN |
5170 |
Mid Speed GMLAN Serial Data (-) |
| 14 |
- |
- |
Not Used |
| 15 |
0.35 L-BU/BK |
659 |
Low Reference |
| 16-18 |
- |
- |
Not Used |
