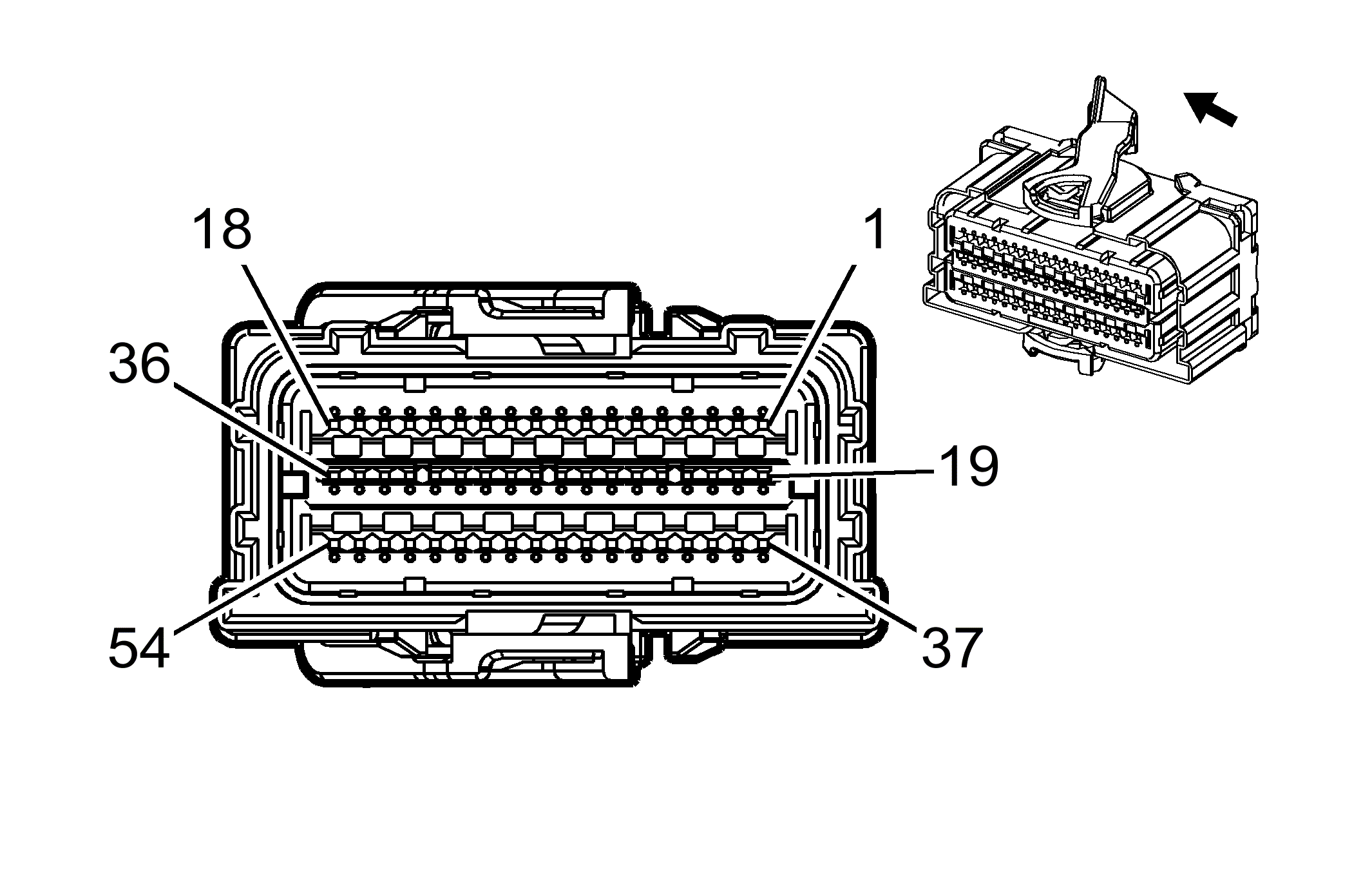

K36 Inflatable Restraint Sensing and Diagnostic Module X2

Courtesy of

Connector Part Information Harness Type: Body OEM Connector: 13789041 Service Connector: 13580845 Description: 54-Way F 0.64 Series, Sealed (YE)

Terminal Part Information Terminated Lead: Pending Release Tool: J-38125-215A Diagnostic Test Probe: J-35616-64B Terminal/Tray: SAIT-A03GF-M064/27 Core/Insulation Crimp: P/P

K36 Inflatable Restraint Sensing and Diagnostic Module X2

Pin	Wire	Circuit	Function
1-12	-	-	Not Used
13	0.35 BN	2137	Side Impact Module - Left Front - High Control
14	0.35 YE/BK	2138	Side Impact Module - Left Front - Low Control
15	0.35 L-GN	2136	Side Impact Module - Right Front - Low Control
16	0.35 TN/WH	2135	Side Impact Module - Right Front - High Control
17	0.35 PU/WH	5019	Roof Rail Module - Left - High Control (Coupe)
18	0.35 PK	5020	Roof Rail Module - Left - Low Control (Coupe)
19	0.35 WH	2132	Side Impact Sensing Module - Left - Signal
20	0.35 PU/WH	6628	Low Reference
21	0.35 WH/BK	6629	Low Reference
22	0.35 D-GN	2134	Side Impact Sensing Module - Right - Signal
23	0.35 YE	354	Front End Sensor - Left - Signal
24	0.35 TN/OG	5045	Low Reference
25	0.35 GY	5600	Low Reference
26	0.35 D-GN	1409	Front End Sensor - Right - Signal
27-32	-	-	Not Used
33-36	-	-	Not Available
37	0.35 TN/WH	2118	Seat Belt Retractor Pretensioner - Left - High Control
38	0.35 OG/BK	2119	Seat Belt Retractor Pretensioner - Left - Low Control
39	0.35 OG	2117	Seat Belt Retractor Pretensioner - Right - Low Control
40	0.35 L-GN	2116	Seat Belt Retractor Pretensioner - Right - High Control
41	0.35 TN/WH	238	Seat Belt Switch - Left
42	0.35 L-GN	5055	Seat Position Sensor - Left - Signal
43	0.35 D-BU	1363	Seat Belt Switch - Left - Low Reference
44	0.35 L-BU	1361	Seat Belt Switch - Right - Low Reference
45	0.35 OG	1362	Seat Belt Switch - Right - Signal
46	0.35 L-BU	5056	Seat Position Sensor - Right - Signal
47-52	-	-	Not Used
53	0.35 YE/BK	5021	Roof Rail Module - Right - High Control (Coupe)
54	0.35 WH/BK	5022	Roof Rail Module - Right - Low Control (Coupe)
