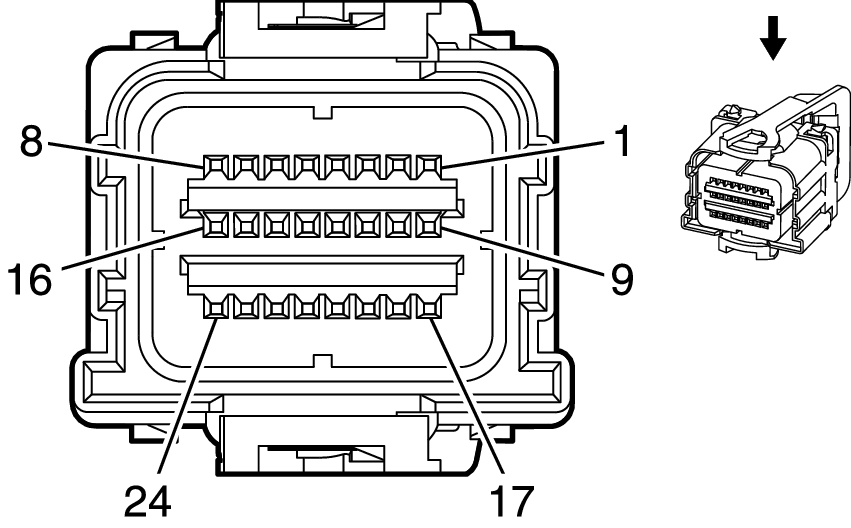

K36 Inflatable Restraint Sensing and Diagnostic Module X1

Courtesy of

Connector Part Information Harness Type: Body OEM Connector: 13790383 Service Connector: 13580843 Description: 24-Way F Kaizen 0.64 Series, Sealed (YE)

Terminal Part Information Terminated Lead: 13580076 Release Tool: J-38125-215A Diagnostic Test Probe: J-35616-64B (L-BU) Terminal/Tray: Not Available Core/Insulation Crimp: Not Available

K36 Inflatable Restraint Sensing and Diagnostic Module X1

Pin	Wire	Circuit	Function
1	0.35 WH	3023	Steering Wheel Module - Stage2 - High Control
2	0.35 PK	3022	Steering Wheel Module - Stage2 - Low Control
3	0.35 BN	3020	Steering Wheel Module - Stage1 - Low Control
4	0.35 TN	3021	Steering Wheel Module - Stage1 - High Control
5	0.35 YE	3025	I/P Module - Stage 1 - High Control
6	0.35 OG	3024	I/P Module - Stage 1 - Low Control
7	0.35 PU	3026	I/P Module - Stage 2 - Low Control
8	0.35 GY	3027	I/P Module - Stage 2 - High Control
9	0.5 RD/WH	4440	Battery Positive Voltage
10	0.35 PU	5234	Front Passenger Seat Belt Indicator Control
11	0.35 D-BU	2307	Passenger Air Bag On Indicator Control
12	0.35 D-GN	2308	Passenger Air Bag Off Indicator Control
13-14	-	-	Not Used
15	0.35 D-GN	5060	Low Speed GMLAN Serial Data
16	-	-	Not Used
17	0.35 PK	1139	Ignition Voltage
18	-	-	Not Used
19	0.5 BK	2450	Ground
20-24	-	-	Not Used
