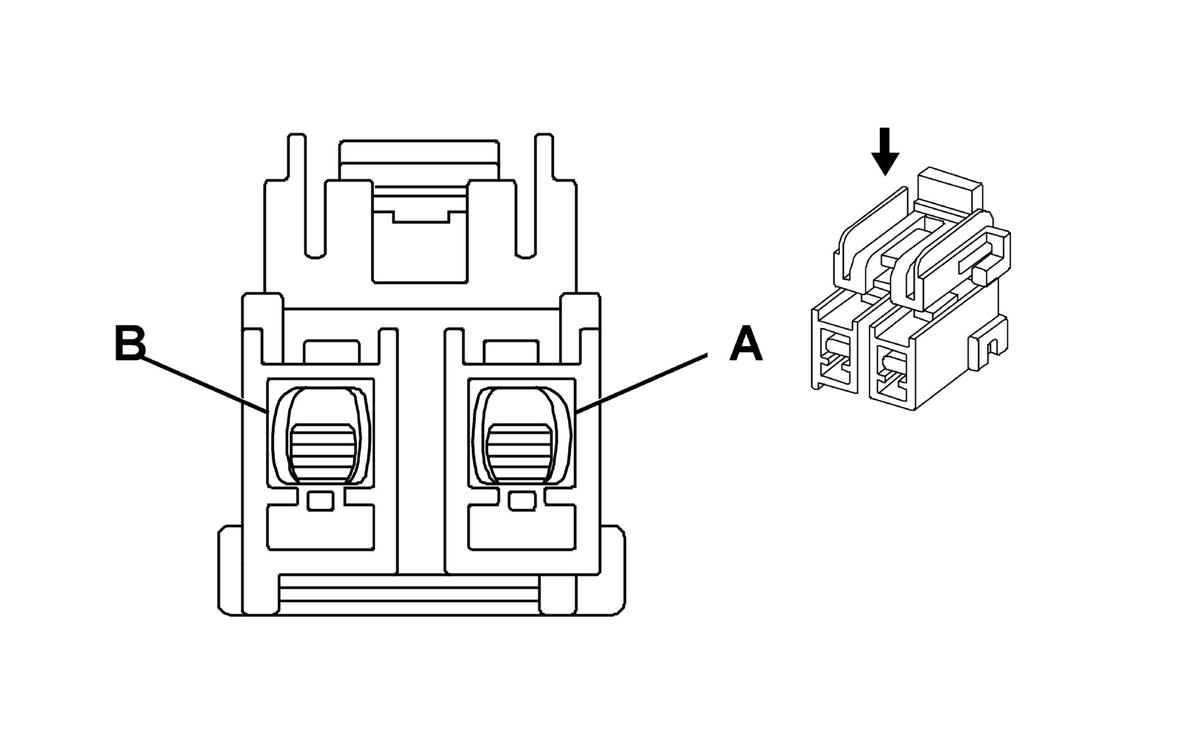

K29 Seat Heating Control Module X1 (KA1)
 Courtesy of
|
Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 13527997
- Service Connector: 88988989
- Description: 2-Way F Metri-Pack 280 Series (BK)
|
Terminal Part Information
- Pin: A
- Terminated Lead: 13579923
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-4A (PU)
- Terminal/Tray: 12110842/4
- Core/Insulation Crimp: A/B
- Pin: B
- Terminated Lead: 13575721 or 13579923
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-4A (PU)
- Terminal/Tray: 12110844/4
- Core/Insulation Crimp: C/A
|
K29 Seat Heating Control Module X1 (KA1)
| Pin |
Wire |
Circuit |
Function |
| A |
2 BK |
850 |
Ground |
| B |
1 RD/WH |
5140 |
Battery Positive Voltage |
