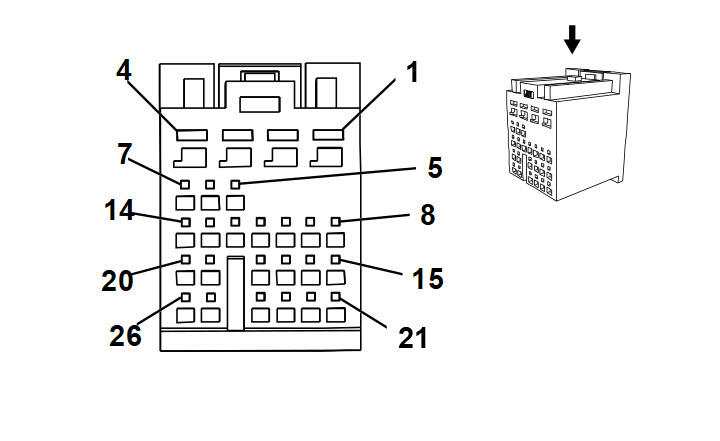

K9 Body Control Module X1
 Courtesy of
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13594128
- Service Connector: 19151262
- Description: 26-Way F 0.64 2.8 Series (WH)
|
Terminal Part Information
- Pins: 1, 4
- Terminated Lead: 13327199
- Release Tool: J-38125-12A
- Diagnostic Test Probe: J-35616-35 (VT)
- Terminal/Tray: SNAC-A061T-M2.8/20
- Core/Insulation Crimp: E/A
- Pins: 2, 3
- Terminated Lead: 13575560
- Release Tool: J-38125-12A
- Diagnostic Test Probe: J-35616-35 (VT)
- Terminal/Tray: SNAC-A081T-M2.8/20
- Core/Insulation Crimp: A/D
- Pins: 9-11, 14, 16, 19, 21, 22, 24-26
- Terminated Lead: 13575870
- Release Tool: J-38125-12A
- Diagnostic Test Probe: J-35616-64B (L-BU)
- Terminal/Tray: SNAC3-A021T-M0.64/20
- Core/Insulation Crimp: J/J
|
K9 Body Control Module X1
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.8 BK |
1650 |
Ground |
| 2 |
2 RD/WH |
2540 |
Battery Positive Voltage |
| 3 |
2 RD/WH |
2740 |
Battery Positive Voltage |
| 4 |
0.8 RD/WH |
2240 |
Battery Positive Voltage |
| 5-8 |
- |
- |
Not Used |
| 9 |
0.35 D-GN |
7555 |
Headlamp Switch Signal |
| 10 |
0.35 L-BU |
1134 |
Park Brake Switch Signal |
| 11 |
0.35 D-GN |
306 |
Headlamp Switch Headlamps Off Signal/Automatic Headlamp Low Control |
| 12-13 |
- |
- |
Not Used |
| 14 |
0.35 PU |
328 |
Interior lamp Defeat Switch Signal |
| 15 |
- |
- |
Not Used |
| 16 |
0.35 WH |
103 |
Headlamp Switch Headlamps On Signal |
| 17-18 |
- |
- |
Not Used |
| 19 |
0.35 BN |
5360 |
Low Reference |
| 20 |
- |
- |
Not Used |
| 21 |
0.35 GY |
728 |
Security Indicator Control |
| 22 |
0.35 L-BU |
13 |
Headlamp Switch Park Lamps Signal |
| 23 |
- |
- |
Not Used |
| 24 |
0.35 TN |
2501 |
High Speed GMLAN Serial Data Bus - |
| 25 |
0.35 TN/BK |
2500 |
High Speed GMLAN Serial Data Bus+ |
| 26 |
0.35 L-GN |
3274 |
RCDLR Data Receive |
