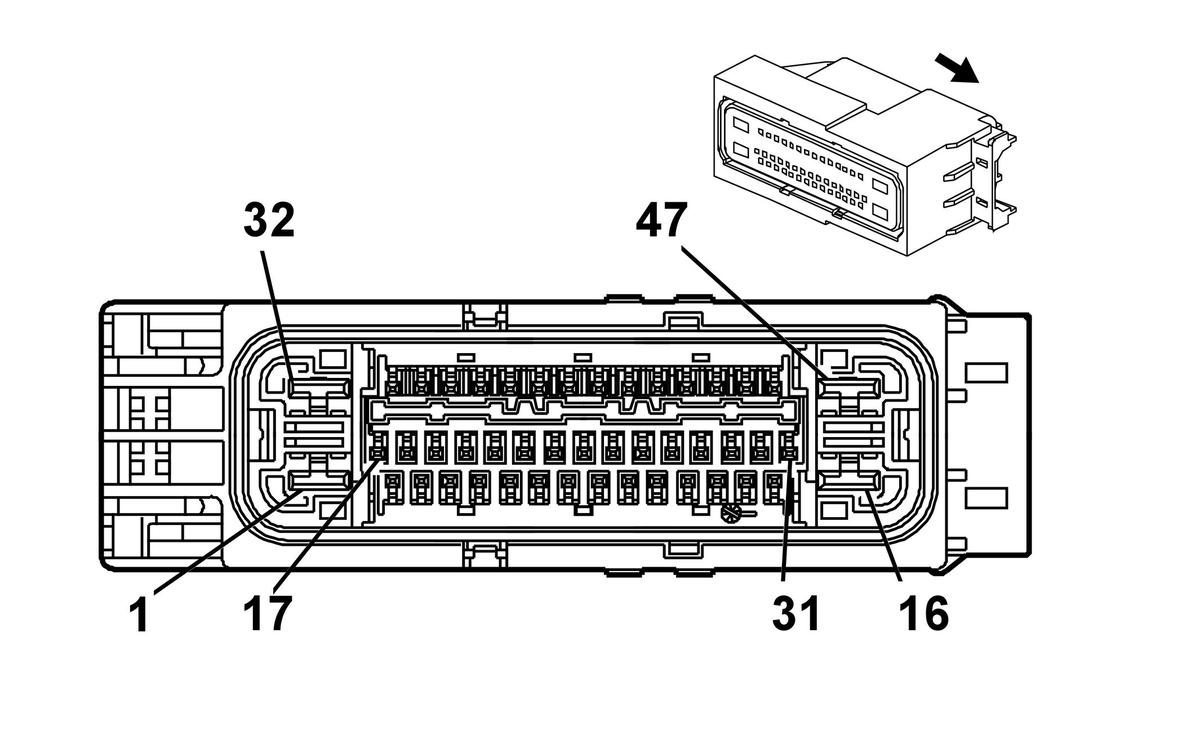

K19 Electronic Suspension Control (ESC) Module (F55)

GM1830966Courtesy of
Connector Part Information
  • Harness Type: Body
  • OEM Connector: ASGPB-47R1A-K
  • Service Connector: 89047377
  • Description: 47-Way F ASG Series, Sealed (BK)
Terminal Part Information
  • Pins: 1, 32
  • Terminated Lead: 13579755
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-42 (RD)
  • Terminal/Tray: 15476168/5
  • Core/Insulation Crimp: F/3
  • Pins: 2-15, 18-31, 33-46
  • Terminated Lead: SEALED: 13576387
  • Release Tool: J-38125-215A
  • Diagnostic Test Probe: J-35616-64B (L-BU)
  • Terminal/Tray: SAITS-A03T-M064/14
  • Core/Insulation Crimp: 9/9
  • Pins: 47
  • Terminated Lead: 13327187
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-42 (RD)
  • Terminal/Tray: 15476168/5
  • Core/Insulation Crimp: F/3
K19 Electronic Suspension Control (ESC) Module (F55)

Pin Wire Circuit Function
1 - - Not Used
2 0.35 L-GN/BK 1209 Left Rear Strut Position Sensor Low Reference
3 0.35 TN/WH 1213 Right Front Strut Position Sensor Signal
4 0.35 OG/BK 1208 Left Rear Suspension Position Sensor Voltage Reference
5 0.35L-GN/BK 1215 Right Rear Strut Position Sensor Low Reference
6 0.35 TN/WH 1207 Left Front Strut Position Sensor Signal
7-10 - - Not Used
11 0.35 L-GN/BK 1215 Right Rear Suspension Position Sensor Low Reference
12 0.35 D-BU 6105 High Speed GMLAN Serial Data (+) (2)
13 0.35 D-BU 6105 High Speed GMLAN Serial Data (+) (2)
14 0.35 L-BU 6106 High Speed GMLAN Serial Data (-) (2)
15 0.35 L-BU 6106 High Speed GMLAN Serial Data (-) (2)
16 0.35 L-BU 5986 Serial Data Communication Enable
17 0.35 L-GN/WH 1210 Left Rear Strut Position Sensor Signal
18 0.35 L-BU/BK 1212 Right Front Strut Position Sensor Low Reference
19 0.35 L-GN/WH 1216 Right Rear Suspension Position Sensor Signal
20 0.35 L-GN/WH 1216 Right Rear Strut Position Sensor Signal
21 0.35 L-BU/BK 1206 Left Front Strut Position Sensor Low Reference
22-23 - - Not Used
24 0.5 TN 2501 High Speed GMLAN Serial Data Bus -
25 0.5 TN 2501 High Speed GMLAN Serial Data Bus -
26 0.35 L-BU/BK 3214 Computer Command Ride Tour LED Control
27 0.8 GY 1117 Right Front Damping Servo Control
28 0.8 L-BU/WH 1116 Right Front Damping Servo Supply Voltage
29 0.8 BN 1009 Right Front Damper Low Reference
30 0.8 GY 1113 Left Front Damping Servo Control
31 0.8 L-BU/WH 1107 Left Front Damping Servo Supply Voltage
32 2 RD/WH 5340 Battery Positive Voltage
33 0.35 OG/BK 1208 Left Rear Strut Position Sensor Voltage Reference
34 0.35 PU/WH 1211 Right Front Strut Position Sensor Voltage Reference
35 0.35 OG/BK 1214 Right Rear Strut Position Sensor Voltage Reference
36 0.35 PU/WH 1205 Left Front Strut Position Sensor Voltage Reference
39 0.5 TN/BK 2500 High Speed GMLAN Serial Data (+) (1)
40 0.5 TN/BK 2500 High Speed GMLAN Serial Data (+) (1)
41 0.35 D-GN/WH 3215 Computer Command Ride Sport LED Control
42 0.8 D-GN 1115 Left Rear Damping Servo Control
43 0.8 D-BU/WH 1114 Left Rear Damping Servo Supply Voltage
44 0.8 PU 1017 Right Rear Damper Low Reference
45 0.8 D-GN 1119 Right Rear Damping Servo Control
46 0.8 D-BU/WH 1118 Right Rear Damping Servo Supply Voltage
47 2 BK 2550 Ground
