G13 Generator X1

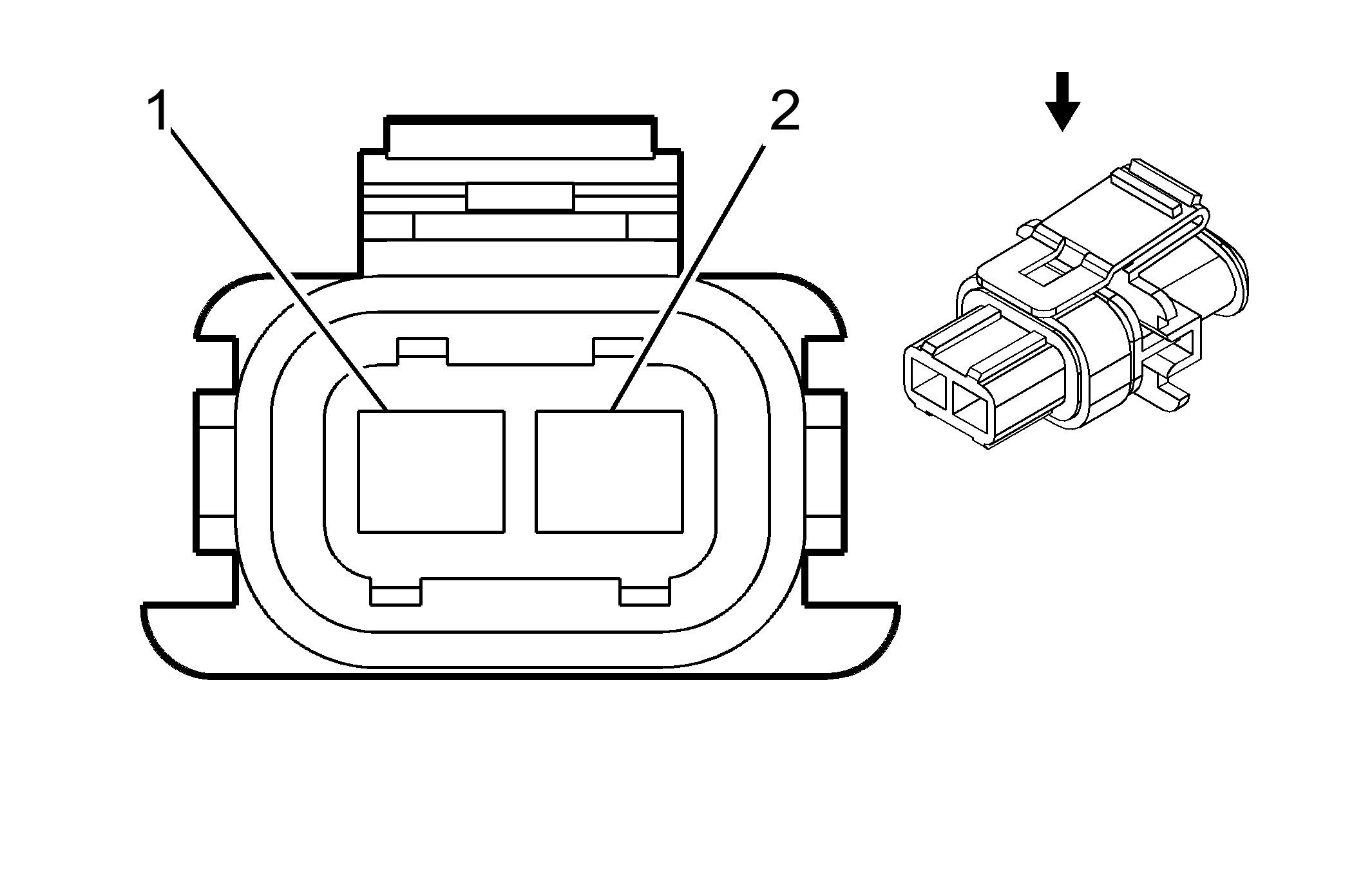

GM1977738Courtesy of
Connector Part Information
  • Harness Type: Engine
  • OEM Connector: 10740370
  • Service Connector: 88988586
  • Description: 2-Way F 2.8 Series, Sealed (BK)
Terminal Part Information
  • Terminated Lead: 13576381
  • Release Tool: J-38125-561
  • Diagnostic Test Probe: J-35616-35 (VT)
  • Terminal/Tray: 1928498056/8
  • Core/Insulation Crimp: E/1
G13 Generator X1

Pin Wire Circuit Function
1 0.5 BN 25 Charge Indicator Control/Charge Indicator Signal
2 0.5 GY 23 Generator Field Duty Cycle Signal
