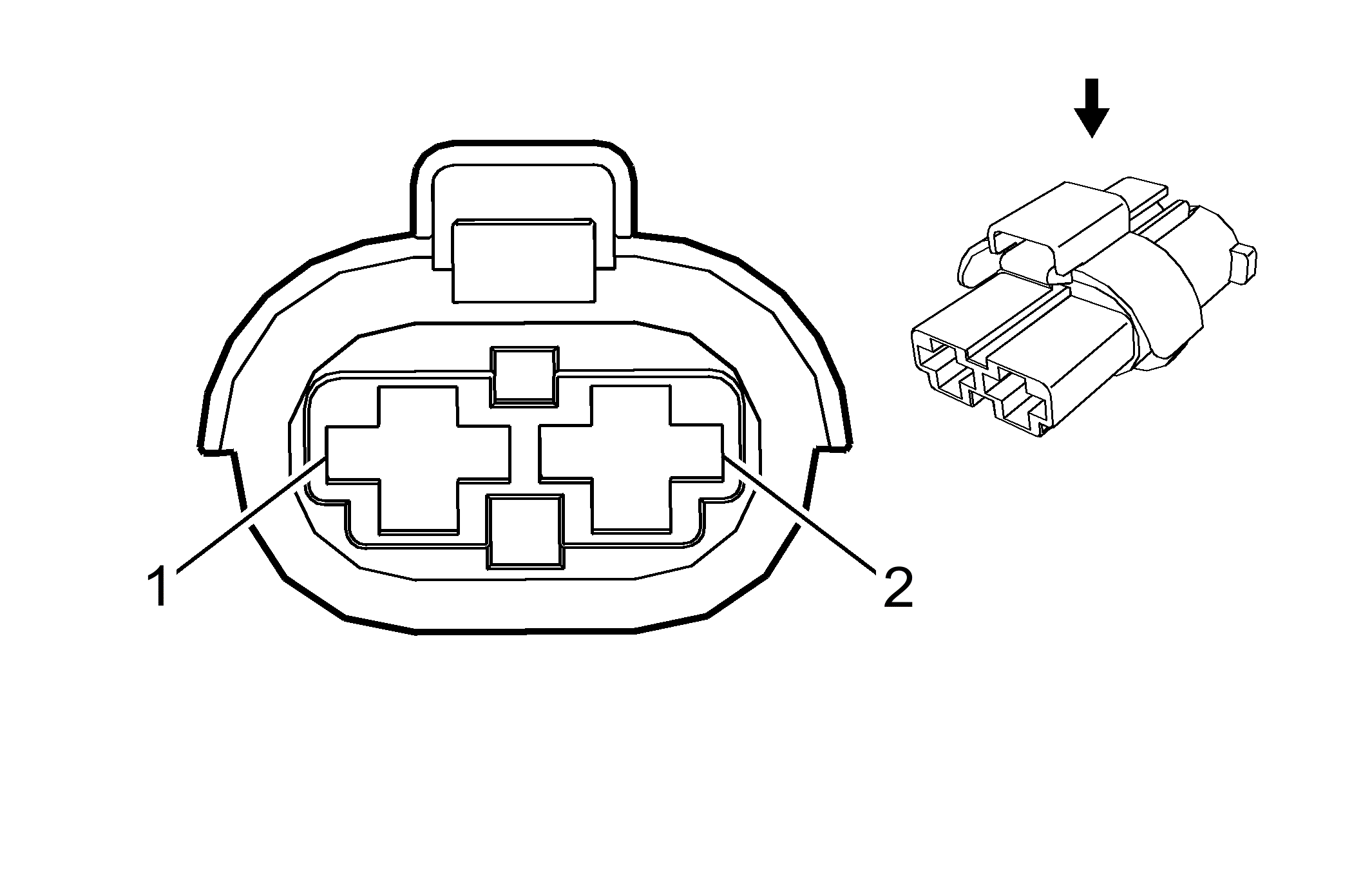

G10R Cooling Fan Motor - Right
 Courtesy of
|
Connector Part Information
- Harness Type: Cooling Fan Motor - Left
- OEM Connector: 1544361
- Service Connector: Service by Component- See Part Catalog
- Description: 2-Way F Sealed (BK)
|
Terminal Part Information
- Terminated Lead: Service by Component- See Part Catalog
- Release Tool: Not Available
- Diagnostic Test Probe: Not Available
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|
G10R Cooling Fan Motor - Right
| Pin |
Wire |
Circuit |
Function |
| A |
4 BK |
504 |
Low Reference |
| B |
4 RD |
409 |
Cooling Fan Motor Supply Voltage |
