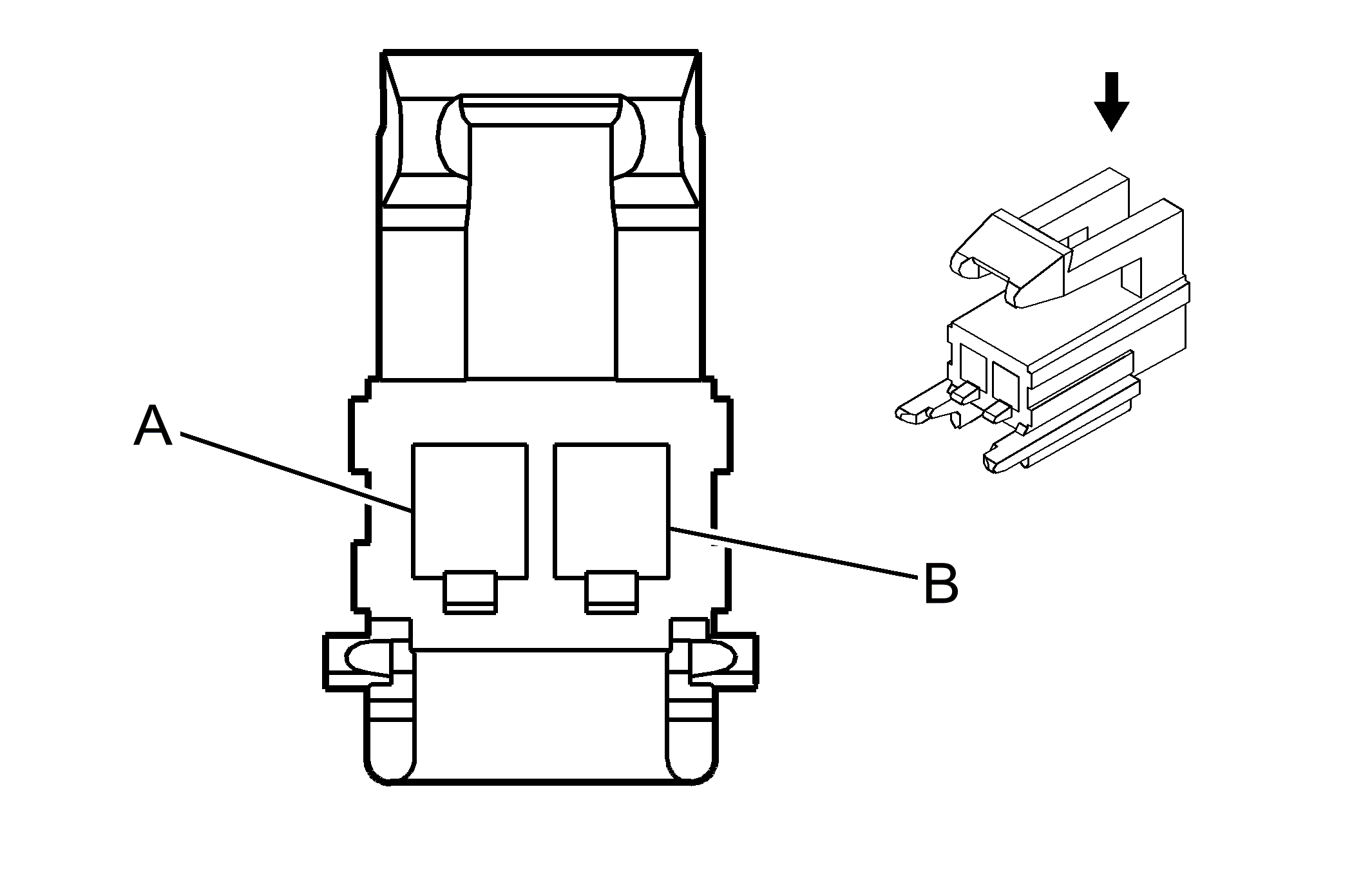

F112D Seat Belt Retractor Pretensioner - Driver
 Courtesy of
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 12110505
- Service Connector: 15306044
- Description: 2-Way F Metri-Pack 150 Series (YE)
|
Terminal Part Information
- Terminated Lead: Not Available
- Release Tool: Not Available
- Diagnostic Test Probe: J-35616-14 (GN)
- Terminal/Tray: Not Available
- Core/Insulation Crimp:Not Available
|
F112D Seat Belt Retractor Pretensioner - Driver
| Pin |
Wire |
Circuit |
Function |
| A |
0.35 TN/WH |
2118 |
Seat Belt Retractor Pretensioner- Left- High Control |
| B |
0.35 OG/BK |
2119 |
Seat Belt Retractor Pretensioner- Left- Low Control |
