F107 Steering Wheel Air Bag X1
 Courtesy of
|

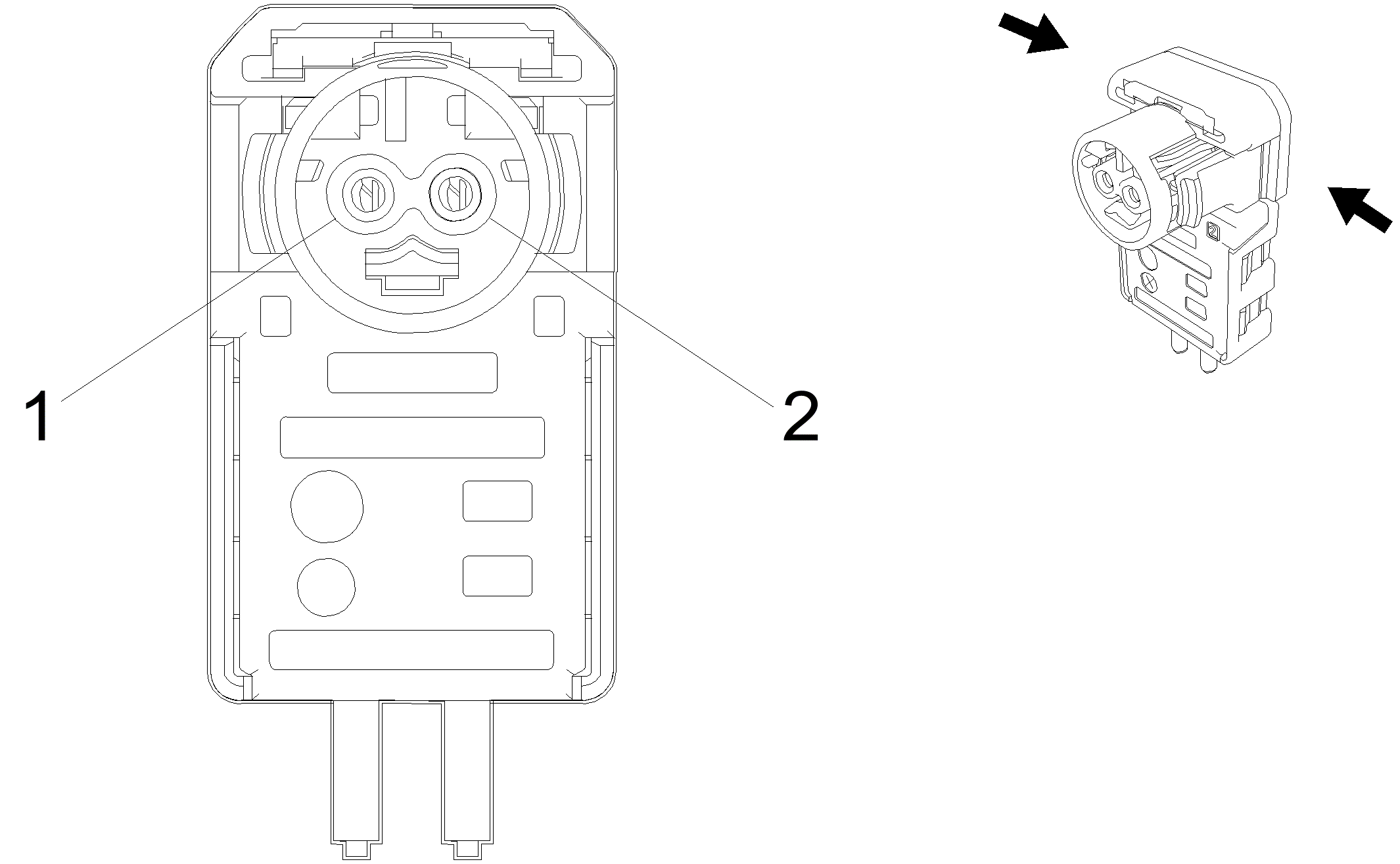

Connector Part Information
- Harness Type: SIR Coil
- OEM Connector: 0988530002
- Service Connector: Service by Component Assembly- See Part Catalog
- Description: 2-Way F (BU with YE Cover)
|
Terminal Part Information
- Terminated Lead: Service by Component Assembly- See Part Catalog
- Release Tool: Not Available
- Diagnostic Test Probe: J-35616-64B (L-BU)
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|
F107 Steering Wheel Air Bag X1
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 TN |
3021 |
Steering Wheel Module - Stage 1 - High Control |
| 2 |
0.35 BN |
3020 |
Steering Wheel Module - Stage 1 - Low Control |
