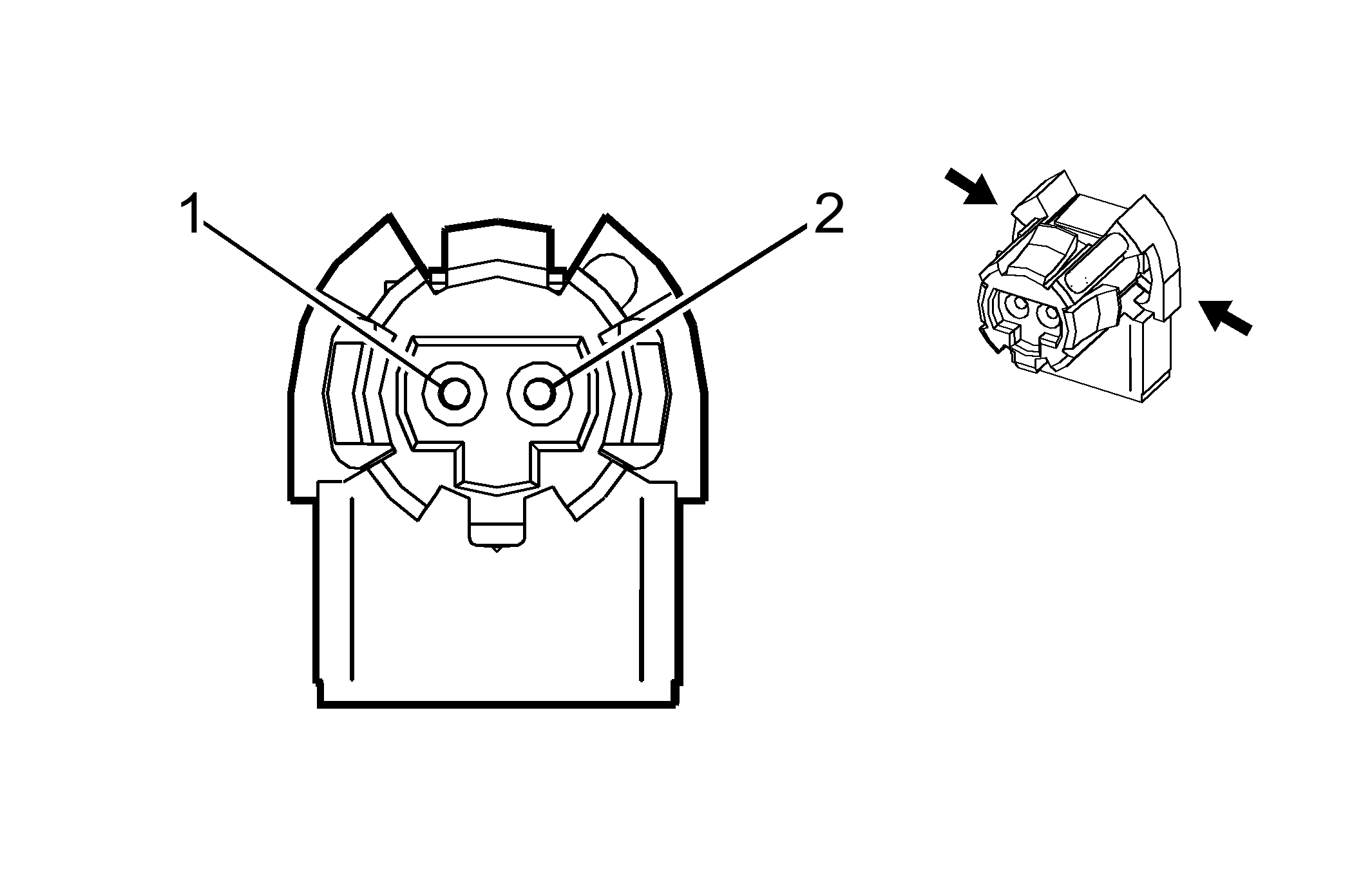

F105 Passenger Instrument Panel Air Bag X1

GM2553266Courtesy of
Connector Part Information
CAUTION:

The connector at the air bag cannot be disconnected or removed without damage to the air bag . If the connector is removed, the entire air bag with jumper harness must be replaced.

  • Harness: Passenger Instrument Panel Air Bag
  • OEM Connector: 54560233
  • Service Connector: Service by Component Assembly- See Part Catalog
  • Description: 2-Way F (L-GY)
Terminal Part Information
  • Terminated Lead: Service by Component Assembly- See Part Catalog
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
F105 Passenger Instrument Panel Air Bag X1

Pin Wire Circuit Function
1 0.5 OG 3024 I/P Module - Stage 1 - Low Control
2 0.5 YE 3025 I/P Module - Stage 1 - High Control
