E7L License Plate Lamp - Left
 Courtesy of
|
Connector Part Information
- Harness Type: License Lamp
- OEM Connector: Not Available
- Service Connector: Service by Harness- See Part Catalog

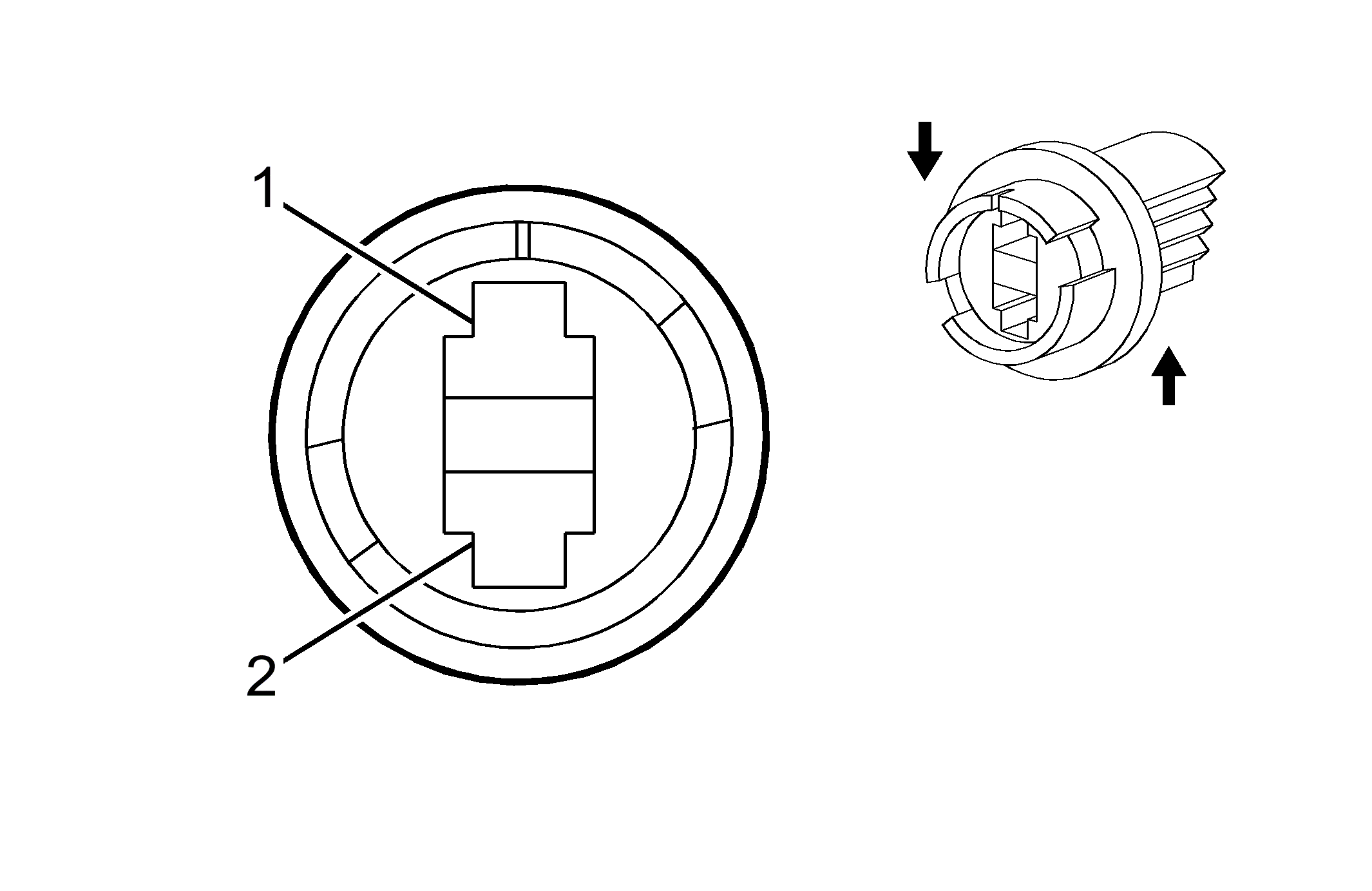

- Description: 2-Way F Bulb Socket, Sealed (BK)
|
Terminal Part Information
- Terminal/Tray: Service by Harness- See Part Catalog
- Core/Insulation Crimp: Not Available
- Release Tool: Not Available
- Test Probe: Not Available
|
E7L License Plate Lamp - Left
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 BN |
6846 |
Rear License Lamp Control (Coupe or CZ2) |
| 0.5 D-GN/YE |
6846 |
Rear License Lamp Control (Convertible) |
| 2 |
0.5 BK |
2550 |
Ground |
