E6 Center High Mounted Stop Lamp
 Courtesy of
|
Connector Part Information
- Harness Type: Rear Window Trim Harness
- OEM Connector: 10763601
- Service Connector: Service by Harness- See Part Catalog
- Description: 2-Way F 090 II Series (WH)
|
Terminal Part Information
- Terminated Lead: 13584467
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-18 (BK)
- Terminal/Tray: 7116-4020/11
- Core/Insulation Crimp: E/C
|

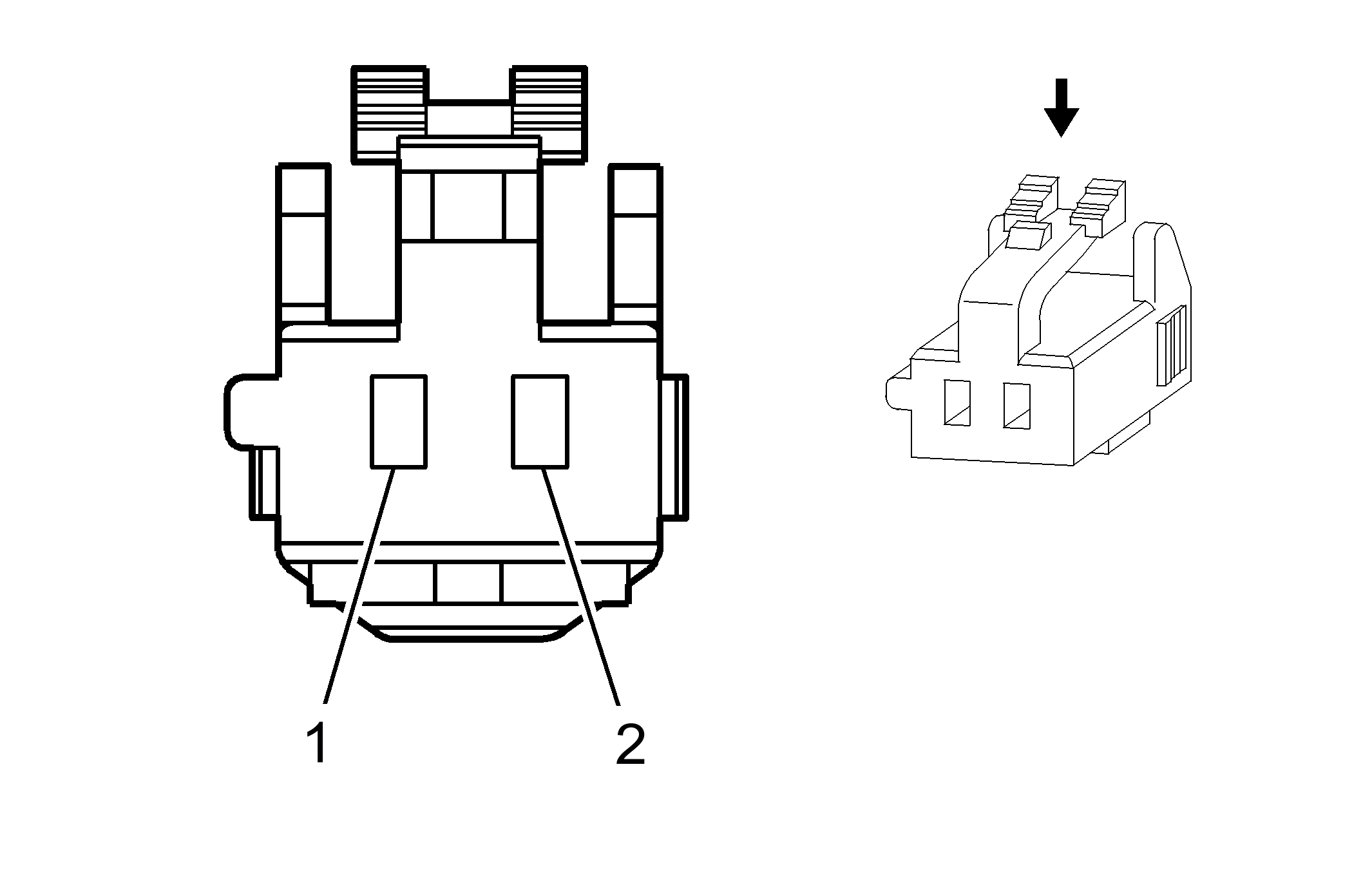

E6 Center High Mounted Stop Lamp
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 WH |
5065 |
Center High Mounted Stop Lamp (CHMSL) Control |
| 2 |
0.5 BK |
2350 |
Ground |
