E5X Tail/Stop and Turn Signal Lamp - Right Outer
 Courtesy of
|

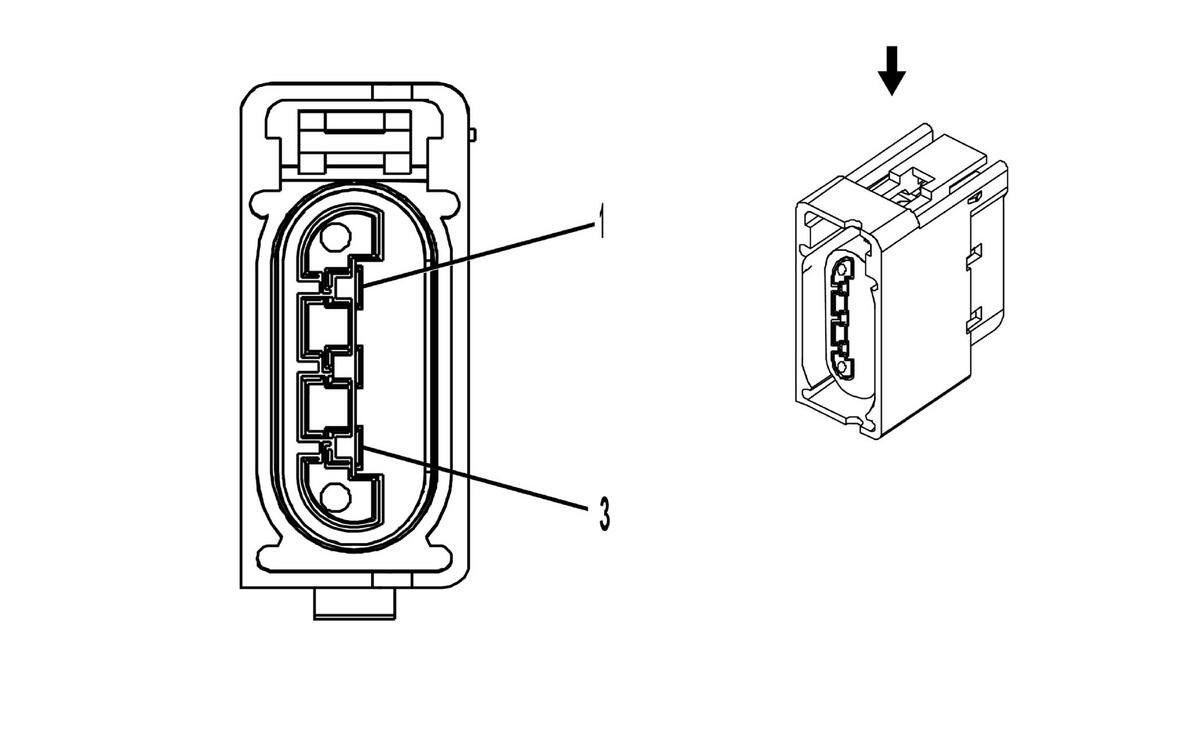

Connector Part Information
- Harness Type: Rear Lamp
- OEM Connector: 13628672
- Service Connector: 88988139
- Description: 3-Way F 1.5 Series, Sealed (BK)
|
Terminal Part Information
- Terminated Lead: 13576389
- Release Tool: J-38125-11A
- Diagnostic Test Probe: J-35616-2A (GY)
- Terminal/Tray: 7116-4102-08/9
- Core/Insulation Crimp: E/1
|
E5X Tail/Stop and Turn Signal Lamp - Right Outer
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 BK |
550 |
Ground |
| 2 |
0.5 BN/WH |
309 |
Right Park Lamp Supply Voltage |
| 3 |
0.5 D-GN/WH |
1335 |
Right Rear Turn Signal Lamp Supply Voltage |
